Overview:
Potting and encapsulation involve embedding products in liquid
resin to protect them from environmental damage, including
corrosion and vibrations. We provide automated and semi-automated
fluid dispensing machines for potting, including 2-component and
epoxy dispensing systems, as well as related vacuum systems. Our
equipment includes high-precision dispensing valves, automated glue
dispensers, and glue mixing machines, designed for electronics
production.

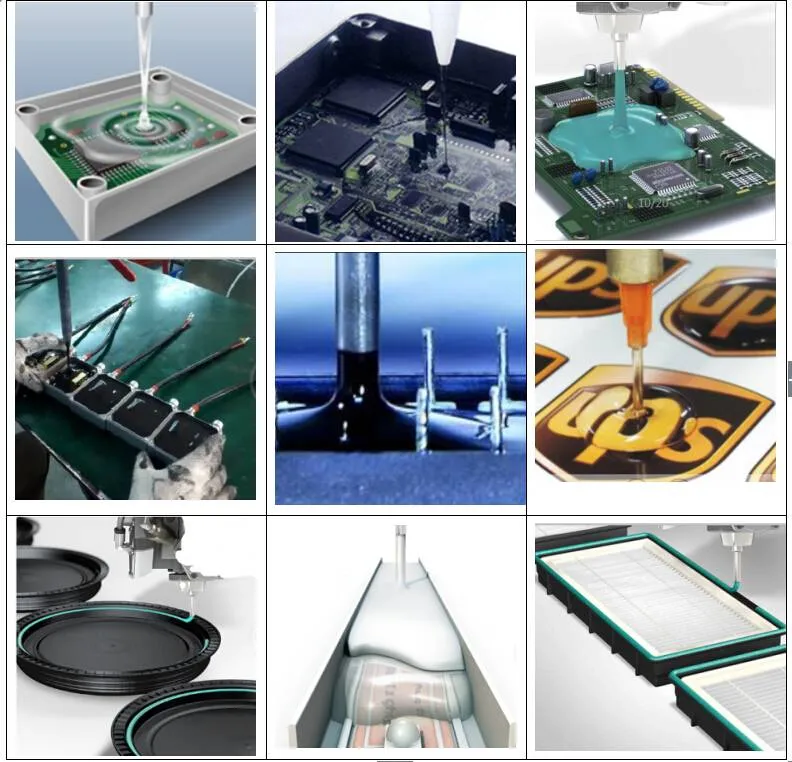

Applications:
Industry: Capacitor, power supply, transformer, ignition coil,
reverse sensor, circuit board, electronic ballast, other electronic
products and LED products where glue potting demanded.
Glue:
Epoxy, silica gel, AB glue, PU and other glue which need matching
Optional Function:
1, evacuation
2, heating
3, Geared pump & plunger piston pump are available; Customers can
choose to needs.
4, Control-card will be chosen to be added in to program to needs.
| Model & Type | PGB-810 |
| Certificate | CE, SGS |
| Dimension | 1550x1350x1700mm |
| N.W. | 600kg |
| XYZ Working Area | 800x700x100mm |
| Flow Speed | 0-150g/5s, or customized |
| Moving Speed | 500mm per second |
| Glue & Ratio | 1:1 to 20:1, Epoxy, Silicone, PU, UV |
| Repeatability | +/-0.02g |
| Accuracy | +/-0.03m |
| Power | AC220V or AC 380V |
| Total Power Consume | 3kw - 5kw |
| Additional Function | Heating, Vacuum, Self-refilling, Self-cleaning |
| Application | LED module, display, LED lights, power supply, driver, motor,
sensor, and transformer and so on^ |
Customization:
Daheng Automation specializes in potting and dispensing systems for
various resin applications, including 1- and 2-component
polyurethanes, epoxies, silicones, and more. We provide solutions
for potting and encapsulation to protect products from harsh
environments, including vacuum and atmosphere pressure options. Our
offerings include automatic and semi-automatic fluid dispensing
machines, dual-component dispensing systems, and high-precision
dispensing robots. Whether for adhesive, epoxy, or silicone
applications, we have the right equipment to meet your needs.
D&H accepts a variety of customizations including size, number
of tanks, temperature control, etc.
Please contact for more information!
