    Patented Suction Valve 2K Vacuum Potting System For Silver Epoxy Resins Dispensing

    Machine Description

    DOUBLE COMPONENT POTTING SYSTEM& UNDER VACUUM SYSTEM
    E-motors potting with 2 part epoxy resins
    We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.
    Patented Suction Valve 2K Vacuum Potting System For Silver Epoxy Resins Dispensing
    Patented Suction Valve 2K Vacuum Potting System For Silver Epoxy Resins Dispensing
    Patented Suction Valve 2K Vacuum Potting System For Silver Epoxy Resins Dispensing
    Potting is the process of embedding electronic components & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed.
    We offer 2K AB adhesive materials manual potting machine and robot potting machine
    1. Vacuum material-feeding system or diaphragm pump feeding system
    2. High precision pump metering system
    3. Dynamic/Static mixing system
    4. Three-axis motion system
    5. Programming control system.
    Features&Functions
    Strong versatility / Multiple configuration / High production capacity / High precision
    * Auto feeding : take use of vacuum pressure to feed materials into A&B tank separately.
    * Tank Stirring : A and B tank configure with stirring motors and blades to prevent material sediment in the tank bottom .
    * Heating : Tank , pipe , pumps are optional with heaters to assure the whole system can be heating from room temperature to 90°C adjustable.
    * Vacuum : A &B tank vacuum for degas the bubble inside material .
    * Dynamic mixing : Configuring dynamic motor and mixer to mix A and B fluids evenly.

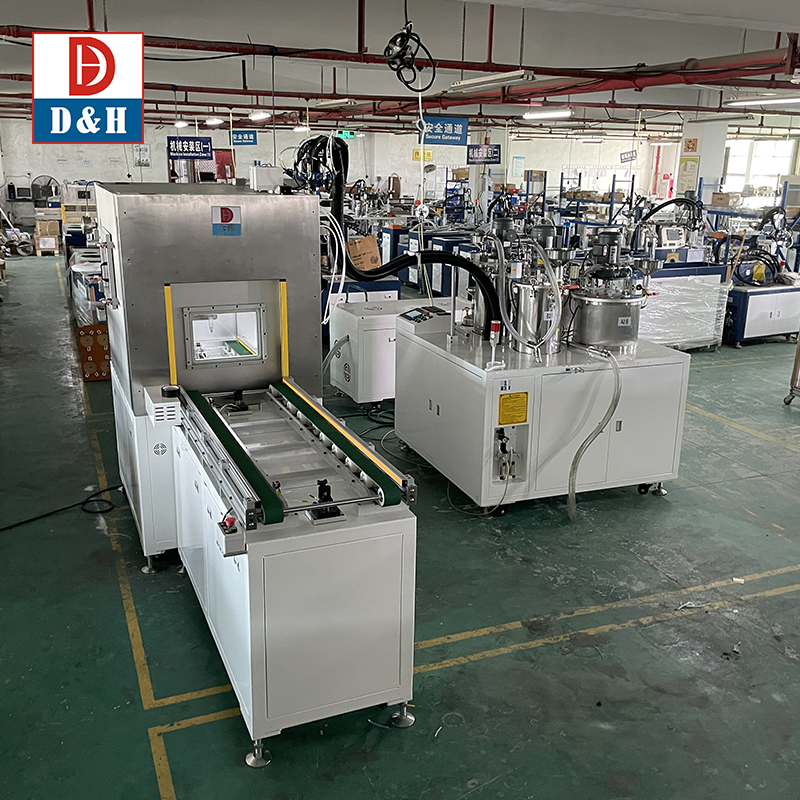

    Vacuum Chamber three axis glue potting machine
    1,Vacuum Chamber
    1.1 Configure security grating toughened glass , observation window, inlet and outlet with safety protection device , to ensure the safety of operators.

    1.2 Digital display vacuum degree with time setting function , PLC communicate with glue mixing machine; can work automatically.
    1.3 Vacuum inspect control system , 55L/s vacuum pump to assure vacuum efficiency.

    2,Vacuum glue dispensing valve

    2.1 Vacuum special glue valve used for glue potting and prevent glue from dropping .
    2.2 Stainless steel design for glue touched parts , rod shaft sealing parts are use original import parts to keep high durability.
    2.3 Vacuum valve can be washed via self-cleaning , to prevent remained glue inside and caused blocking .

    3,Three axis working platform
    3.1 Three axis chamber installed on the top , which is curtail the chamber volume efficiently and accelerate vacuum speed .
    3.2 Touch screen operation , English & Chinese operation version , can record and display different parameter .
    3.3 Program dot , line , arc , circle and some irregularity products . Glue potting files can be edit on programming or import from CAD. The program memory 99pcs . The touch screen programming support the whole column , graphical browsing , group editing and other functions.
    3.4 Z axis fixed board can be adjusted up and down to adopt different work pieces on different heights , you don’t re-edit the working path , but only adjust the working path when replace the nozzles .
    Tech Data
    Glue ratio
    1 :1 ---10:1
    Ratio acurracy
    ±2%
    Glue-out speed
    1g/s --24g/s(Base on glue ratio)
    Glue-out accuracy
    ±2%
    Program memory
    99 pcs
    Glue viscosity
    50cps~8000cps(Reference number)
    Opearation Mode
    Manual mode /Automatic mode
    Ratio Control
    PLC/ Double plunger pump (Can change different type of metering pumps)
    Flow Control
    Digital input
    Parameter display
    Pointer / digital display
    Automatic control system
    Touch screen / button switch/ third party signal
    Mixing Method
    Static mixing / Automatic cleaning
    Storage Tank
    Stainless steel A and B(10L,25L ,40L optional)
    Stainless steel cleaning barrel C(5L)
    Vacuum degas(-0.1MPa)
    Liquid level sensor(Low liquid level/high liquid level)
    A/B Tank stirring
    AB glue constant temperature heating(available)
    Glue filter
    Power
    220V/50Hz/5000W
    Outer dimension
    Glue Potting Machine:995mm×600mm×1500mm
    Frame Materials
    Cold rolled steel/industrial aluminum/stainless steel/sheet metal
    Category
    Parameter
    Category
    Parameter
    Mixing ratio
    1:1—10:1
    Speed
    0-250mm/s(displacement speed)
    Working area
    Inner area:500x350x100mm,
    Dimension:900x790x760mm
    Program memory
    99 pcs
    Precision
    ±0.1mm (accuracy of displacement)
    ±2%(mixing accuracy)
    Input air pressure
    0.4MPa—0.8MPa
    Viscosity range
    0cps~30000cps
    Working path
    Dot, line , arc , circle
    Operation mode
    JOG/AUTO
    Control system
    PLC
    Auto control system
    Industrial touch screen program with programming modification, storage and so on
    Flow control
    Digital input
    Programming method
    Teaching programming
    Out-glue control system
    AB glue suck-back valve /vacuum suck back skill.
    Mixing mode
    Dynamic
    Power
    380V/50Hz/1200W
    Storage system
    Stainless steel tanks
    A Tank: 40L & B Tank: 25L
    (10L,25L ,40L optional)
    Vacuum degree
    -0.1MPa
    Vacuum time
    90S(as per different requirement)
    Application
    Patented Suction Valve 2K Vacuum Potting System For Silver Epoxy Resins Dispensing
    Potting &Casting:
    electronics components , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, ,underwater parts, electronic ballast ,aviation parts, aerospace...
    Transformer , capacitance , power module , regulating plate ,protection module , generator , pressure package , soli relay ,fault indicator , Sensors , junction box , clutch , wave filter , water meter , battery cover , rectifier and so on ...
    Applicable Materials
    1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials.

    Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .
