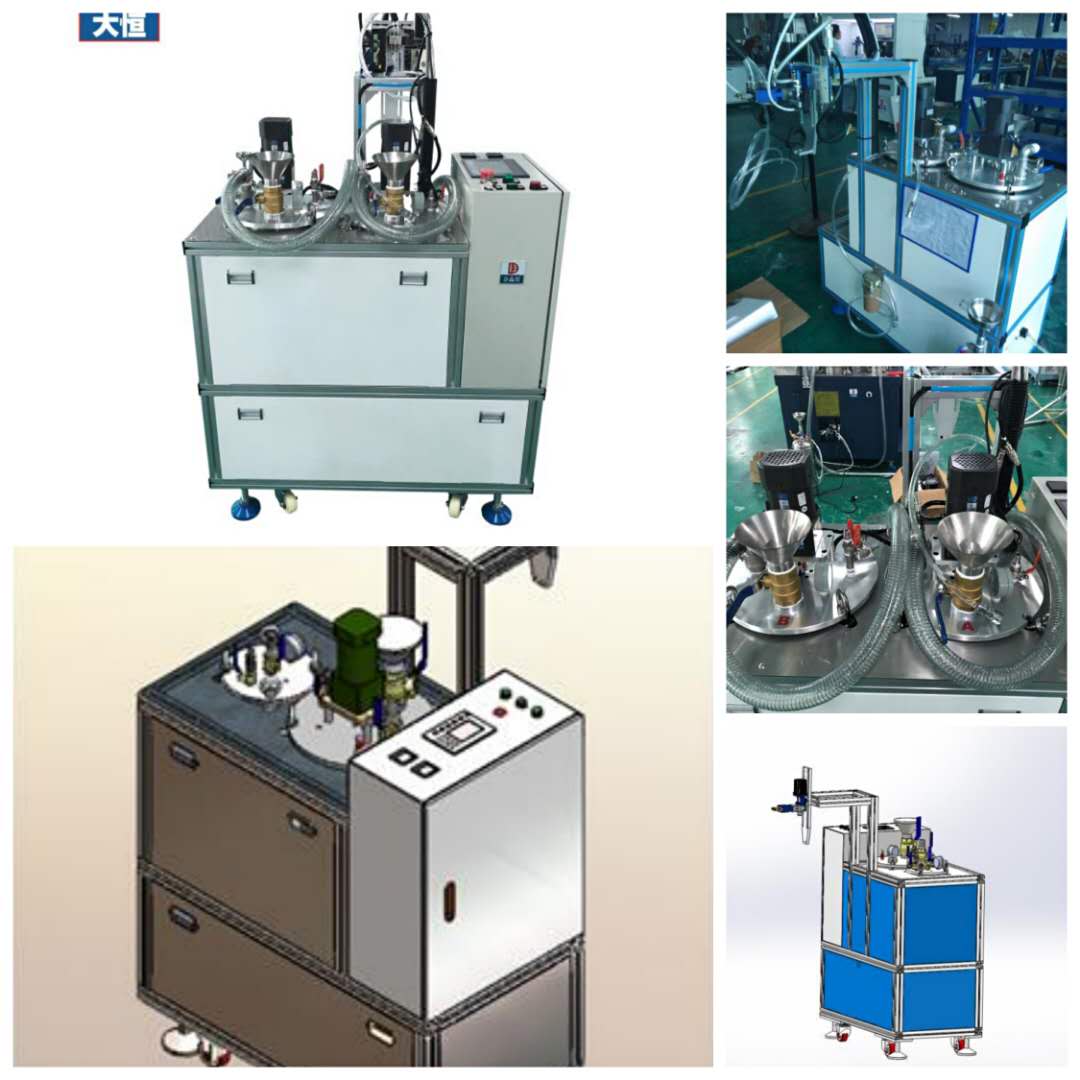

    Compact Meter Mix Dispense System for Epoxy Adjustable Mixing Ratio and Performance

    We are metering, mixing & dispensing machines’ expert. According to your requirements, We provides reliable dispensing systems and solutions for our customers. From low-viscosity to high-viscosity resins, vacuum dispensing, heat preservation for whole tubes & storage tank, pressure monitoring and etc. We are not only a manufacturer, but also a good partner for your production.
    This is automatic degassing, metering, mixing, and dosing base on pre-determined ratio. The machine equips with automatic refill,and degassing system. It can also add agitate stirring, tank heating, and automatic valve cleaning. The operation is simple and user friendly, which greatly saves the manual mixing time, improves efficiency, and also save material and labor cost.
    It suits for mixing and potting various types of two components materials, that requires to use manually or potable mixing head.
    Able to apply material on electric (wire) road board industry, electronic components industry, electric light source industry, small home appliance industry, igniter industry, automotive supplies industry, vacuum cleaner industry, filter industry and many
    other fields.

    Introduction

    1. Working Mode: controlled by PLC module and MCGS touch screen.
    2.High precision valve: high speed, glue off clean, no glue drawing, no dropping.
    3. Core metering pump specially design for different material from low to high viscosities.
    4. Mix glue A & B more evenly; no more or no less for agent B.
    Working principle
    Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
    Compact Meter Mix Dispense System for Epoxy Adjustable Mixing Ratio and Performance
    Tech Data
    ITEM
    Parameter
    ITEM
    Parameter
    Mixing ratio
    1:1-10:1 adjustable
    Accuracy
    ±2%
    Displacement speed
    250mm/s(speed)
    Tolerance
    ≤0.2mm
    Out-glue speed
    1-12g/s
    Program memory
    99pcs-999pcs

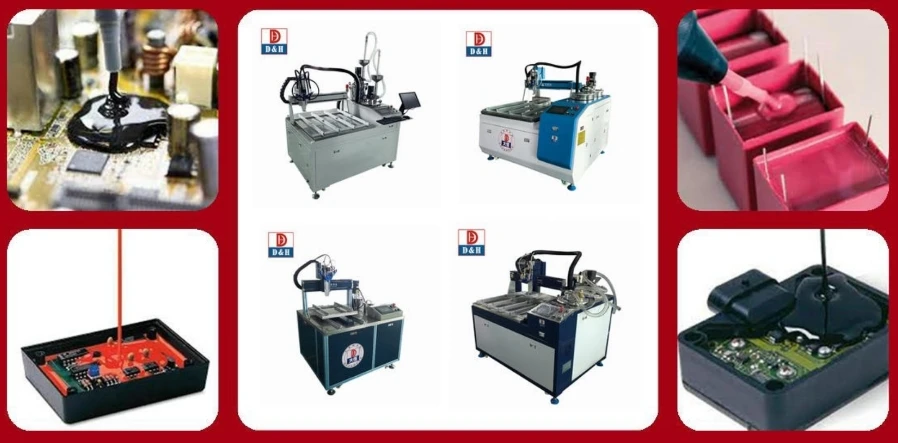

    Application
    Compact Meter Mix Dispense System for Epoxy Adjustable Mixing Ratio and Performance

    Application

    1.Potting&Coating&Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts...
    Electronic Potting
    EV Motor Potting
    Automated Vacuum Potting

    2.Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid
    dispensing....
    PCB / LED
    Electronic dispensing
    Phone case dispensing

    3.Bonding&doming : LCD screen ,LOCA bonding,ABS plastic,different types of stickers , badge , keychains , souvenirs,arts , photo frame , and other arts graphics....

    Bonding / Sealing / Coating
    Carbon and Glass fiber coating
    Flexible packaging laminating
    Composite Fabrication
    Adhesive bonding
    Filters

    SOLUTIONS

    According to your material characteristics & requirements
    We provide detail plannings and machines.
    If you have any dispensing requirement, feel free to contact.REQUIREMENTS
    Provide the material specification and questionnaire for metering / mixing dispensing machine layout.

    DISCUSSION & PLANNING
    Discussing the application equipment for the customer requirement accordingly.

    QUOTATION
    According to practical experience and theoretical base to make details offer.

    MANUFACTURE
    After received the order, arrange the machine building and test before finish.

    PRECISION DISPENSING PARTS

    * Piston Pump
    * Gear Pump
    * Screw Pump
    * Flow meter
    * Pressure Gauge
    * High pressure/wear resistant control valve
    * Servomotor Axis
    * XYZ Sliding table

    SUITABLE FOR VARIOUS MATERIALS AND APPLICATIONS

    * Silicone
    * Epoxy
    * Polyurethane resin and foam
    * Polysulphide
    * Composite prepreg resin
    * Heated type high viscosity resin
    * Coating
    * Vacuum dispensing
