Customization Automatic 3D Dome Label Dispensing Machine by Daheng Patent Plunger Pump

Guangzhou Zhengqi Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Customization Automatic 3D Dome Label Dispensing Machine by Daheng Patent Plunger Pump from wholesalers

    Buy cheap Customization Automatic 3D Dome Label Dispensing Machine by Daheng Patent Plunger Pump from wholesalers
    • Buy cheap Customization Automatic 3D Dome Label Dispensing Machine by Daheng Patent Plunger Pump from wholesalers

    Customization Automatic 3D Dome Label Dispensing Machine by Daheng Patent Plunger Pump

    Ask Lasest Price
    Brand Name : D&H
    Model Number : PGB-700
    Certification : CE,ISO,ROHS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 unit per month
    Delivery Time : 5-8 Working days
    • Product Details
    • Company Profile

    Customization Automatic 3D Dome Label Dispensing Machine by Daheng Patent Plunger Pump

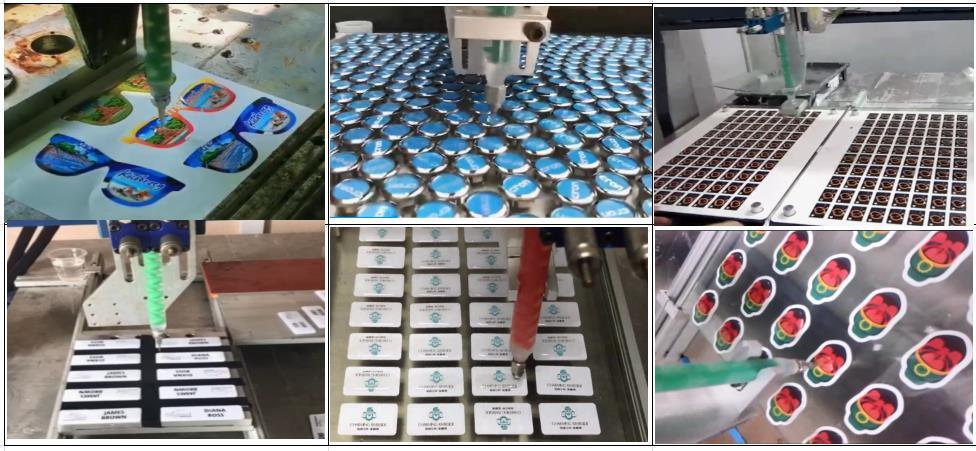

    Machine picture :


    Applications :
    Photo frame, arts, crafts, Reverse Sensor, Electronic Circuit Board, Electronic Ballast, air Filters, LED products, Electronic components, Crafts, Ads modules, Capacitors, Power supply, Transformer, end cap for the filter, solar junction box, Power module, Ignition coil, Sensor, Photovoltaic module, Photovoltaic inverter. Etc


    Automatic 3D Dome Label Dispensing Machine
    Automatic 3D Dome Label Dispensing Machine


    Tech Data
    ITEM
    Parameter
    Mixing ratio
    1:1--10:1 adjustable
    Working range
    700*700*100mm
    Displacement speed
    250mm/s(speed)
    Out-glue speed
    1-12g/s per single pump
    Accuracy
    ±2%(output volume)±2%(mixing)
    tolerance
    ≤0.2mm
    Flow control
    Digital input
    Program memory
    99pcs-999pcs
    Motion trail
    Dot, line, curve, circle
    Automatic controlling system
    Touch screen (to achieve program programming, modification, storage, and so on
    Out-glue control system
    AB glue back suction valve, achieve AB glue independent operation
    Programmatically
    Tech programming/or computer systems (Micro software Windows 7, Windows10 optional)
    Mixing method
    dynamic mixing
    Power supply
    220V/50Hz/1500W without heating
    Air source
    0.5-0.8Mpa
    Viscosity range
    50-20000cps
    Outer dimension
    1500L*1200W*1600H mm
    A tank
    10L 25L 40L stainless tank(optional)
    B tank
    10L 25L 40L stainless tank(optional)
    Others
    AB tank,A pump, AB pipeline heating function

    Applied materials :

    Epoxies, Urethane(PU), or Silicone.
    Two components glue, AB glue, AB part glue, silicone, epoxy resin, polyurethane;
    All kinds of two-component mixed glues with the required ratio, such as epoxy resin AB glue, polyurethane, silica gel, PU glue, flocking glue, paint, etc.

    Automatic 3D Dome Label Dispensing Machine

    Company profile :


    Automatic 3D Dome Label Dispensing Machine
    Automatic 3D Dome Label Dispensing Machine

    Automatic 3D Dome Label Dispensing MachineAutomatic 3D Dome Label Dispensing Machine

    Automatic 3D Dome Label Dispensing MachineAutomatic 3D Dome Label Dispensing Machine

    Automatic 3D Dome Label Dispensing Machine
