Advanced Automatic Gluing Dispenser Machine with Static or Dynamic Stiring Method

Guangzhou Zhengqi Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
  • Product Details
  • Company Profile

Advanced Automatic Gluing Dispenser Machine with Static or Dynamic Stiring Method

Automatic Gluing Dispenser Machine (PG-1200) 1200X1200X30mm

Automatic Gluing Dispenser Machine


I.Tech Data
Glue Ratio: from 1:1 to 10:1
Stirring mode: static(standard)/dynamic(optional)
XYZ working area: 480*1200*30mm
Data Memory: 20
Program Method: teach & show-how method
Size: 1100 x 800 x 1500mm
Input Air: 0.5~0.7 MPa
Power Input: AC220V

Automatic Gluing Dispenser Machine


II. Main Characters
1.It is an automatic system of simultaneous glue metering, mixing and dispensing.
2.You can adjust the glue ratio and out-put quantity based on needs.
3.The high precision of mixing helps to avoid possible glue waste.
4. Easy to program, disassembly and install.
5. Automatic cleaning system can be added into the device if needed.
6. Wide applications

Model & Type

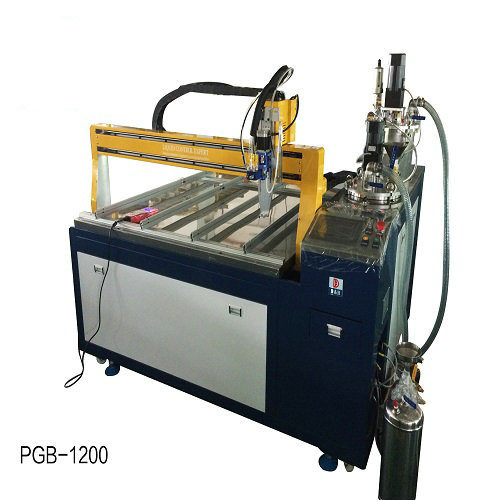

PG-1200 Automatic Glue Dispenser Machine
CertificateCE, SGS
Dimension2000x1600x1500mm
N.W.450kg
XYZ Working Area1200x1200x80mm
Flow Speed0-66g/5s, or customized
Moving Speed0-300mm per second
Glue & Ratio1:1 to 20:1, Epoxy, Silicone, PU, UV
Repeatability+/-0.02g
Accuracy+/- 1%
PowerAC220V or AC 380V
Total Power Consume1.5kw
Additional FunctionHeating, Vacuum, Self-refilling, Self-cleaning
ApplicationLED rigid bar, wall washing lamp, crystal photo album
