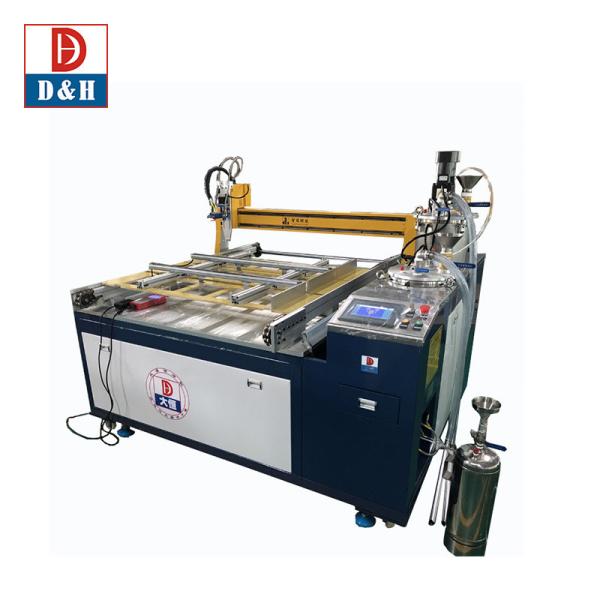

AB Black High Thermal Epoxy Potting Compound DOS Dispensing Potting
Meter Mix Machine
Why Choose us !
Where to buy polyurethane machine ?
We Daheng Automation specialize in different types of potting and
dispensing system. No matter what your resin application
requirements look like: we can do most of them in our fully
equipped lab. We can handle 1- and 2-component polyurethanes,
epoxies, acrylics, silicones, temperature, humidity and UV curing
materials. They can be from low- to high-viscosity, filled or
unfilled and even high abrasive for thermal conductivity.
Potting and encapsulation is the process of embedding products &
assemblies in a liquid resin (potting compounds) to protect them
against rough environment conditions. Potting can be performed in
atmosphere pressure or even under vacuum, if high voltage
insulation and high temperature differences are needed.
Encapsulation of parts will stop corrosion of metals and reduce
damage caused by vibration and mechanical stress.
We offer automatic ,se-mi automatic fluid dispensing potting
machine and the related production line and vacuuming systems.we're dedicated to empowering manufacturers with cutting-edge
dispensing solutions tailored to their unique needs. Our CCD Vision
Dispensing System and AB Glue Machine represent the culmination of
years of research and development, designed to elevate your
production processes to new heights.
Experience unmatched precision and consistency across a variety of
materials, from 2-Part Silicone to Polyurethane, Epoxy, and Potting
Compounds. With our AB Resins Compound Dosing and Dispensing
Potting System, you can bid farewell to uncertainties and hello to
efficiency, ensuring consistent results with every application.
Our commitment to customer satisfaction is evident in our range of
solutions, including Two-Component and Dual-Component Dispensing
Machines, Glue Dropping and Filling Machines, and more. These
solutions are crafted to seamlessly integrate into your workflow,
maximizing productivity and minimizing downtime.
Automation lies at the heart of our dispensing solutions, with
features such as High-Precision Dispensing Valve Units in our
Dispensing Robot and Automated Dispensing Equipment. These systems
are designed to streamline your operations, allowing you to focus
on what matters most - delivering quality products to your
customers.
Whether you're working with 2K Dispensers, AB Epoxy Resins, or
Polyurethane Silicones, our solutions are tailored to your specific
requirements. Trust in our expertise across Metering, Mixing,
Pouring, Potting, and Filling processes to unlock your production
potential.
Join us in shaping the future of manufacturing with our Dynamic and
Static Mixing Systems, offering versatility and reliability across
a wide range of applications. Let us partner with you on your
journey to success.
Contact us today to learn more about how our dispensing solutions
can transform your operations and drive your business forward.
Introduction :1.Working Area: controlled by PLC module and MCGS touch screen.
2.High precision valve: high speed, glue off clean, no glue
drawing, no dropping.
3. Gear pump special for transparent glue.
4. Mix glue A & B more evenly; no more or no less for agent B.
Working principle :
Compound materials A & B are kept in two tanks separately. There
are two sets of metering pumps inside the machine for metering A
and B resin by setting ratio, draining out material individually
from tank A & B. Liquid A & B mix with each other in the mixer pipe
and dispensed out according to the programmable data.
Tank system technology:1 Stainless panel vacuum pressure tank which can bear negative
pressure of inner tank .
2 Tank with motor stirrer that prevent the glue from sediment and
keep the potting material in constant temperature.
3 Tank with top/ high /low liquid sensors that ensure alarm warning
when liquid higher or lower the setting level .
4 Tank with vacuum degas (degas time can be set through touch
screen), so the material can be re-feeding through vacuum negative
pressure .
5 Tank with pressure releasing ball valve ; the bottom of tank
reserved back-flow connector and river closure ball valve.
6 Tank with heating panel which can preheat materials to assure
good flowability.
7 Tank with artificial feeding mouth that can be added glue
appropriately by hand .
8 Tank with silica-dryer which can prevent material especially PU
from crystallization .
D&H Pump technology1 Two cylinder plunger pumps work by durable motors.2.The biggest flow volume :24g/s,Repetition accuracy:0.2g.
3.Also Suitable for high viscosity glue: 50cps~35000cps.
4. Suitable for big flow dispensing or slight flow dispensing.
5. Suitable for frequent start and stop dispensing.
6. Anti-wear, Anti-corrosion, super long life time.Valve technology1.Two cylinder plunger pumps work by durable motors.
2.The biggest flow volume :24g/s,Repetition accuracy:0.2g.
3.Also Suitable for high viscosity glue: 50cps~35000cps.
4. Suitable for big flow dispensing or slight flow dispensing.
5. Suitable for frequent start and stop dispensing.
6. Anti-wear, Anti-corrosion, super long life time.
Teach dataWorking area | 1200mm×1200mm×100mm |
Processing craft | Dot ,line , arc , circle |
Speed | 0---250mm/s |
Movement accuracy | ≤±0.1mm |
Mixing ratio | 1 :1 ---10:1 |
Gluing-out speed | 1g/s --20g/s |
Repeated accuracy | ≤±2% |
Program memory | 99 pcs |
Adhesive viscosity | 300cps~20000cps |
Operating mode | Manual /Automatic / third party signal |
Proportional control | PLC/ double cylinder plunger pump |
Flow control | Digital input |
Program | Teaching program |
Automatic controlling system | Touch screen / hand terminal |
Mixing way | Dynamic mixing |
Cleaning way | Self-cleaning |
AB Tank | Stainless tank A (25L) B(25L) |
Vacuum defoamation(-0.1MPa),4L/s |
Liquid level sensor and sound light alarm |
Tank stirring |
Power supply | 220V/50Hz/3500W |
Input air pressure | 0.4MPa-0.7MPa |
Dimension | 1550mm×1960mm X1327mm |
Materials | Industrial aluminium+stainless material |
1 Dispensing volume is controlled by the speed of pump's motors ;
Glue speed adjustable within the speed range .
2 Machine with detecting function that detect the speed and running
time of pumps to ensure the ratio reliability.
3 Adjustable gluing-out volume make sure glue A/B dispense out at
the same time from glue valve to get better glue mixing effect .
4 Machine with gel resistance calculator , which prevent the
mixture curing inside .
5 You can set single gluing-out and steady gluing-out function to
meet up with your different process requirement .
6 Whole machine system and function is controlled by Panasonic PLC
and MGCS touch screen .
7 Reserved PLC communication interface, which easy connecting with
outside device .
8 Equipped with a safety lock to prevent staff from wrong operation
.
Application:
1.Potting&Encapsulation &Casting: electronics componnets , PCB board, Capacitor, power supply,
transformer, ignition coil, reverse sensor, circuit board, filter
products ,underwater parts, electronic ballast ,aviation parts,
aerospace parts....
2.Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display
module ,medical parts,medical liquid filling ....
3.Bonding&doming : LCD screen ,LOCA bonding,ABS plastic,different types of stickers ,
badge , keychains , souvenirs ,arts , photo frame , and other arts
graphics....
Applicable materials
1K and 2-component polyurethanes, epoxies, acrylics, silicones,
temperature, humidity and UV curing materials. Two component
potting materials , 2-part compound materials, AB part compound
materials , 2K silicones ,2K epoxies resin, Bi-component PU,
Ployerster, Polyurethane, UV materials and so on .
Service Term
1.Staff training
Seller is responsible to provide machine's training including
installation, debugging, maintenance to assured customer can
totally use the operation skills and well acknowledge maintenance
of machine .2.Maintenance Service
2.1Seller provide one year warranty period and support free
maintenance service during warranty . Software upgrade service is
provided for a long life time.
2.2 In case parts of the machine become broken within the warranty
because of non-artificial factors, we send you part replacement
free, buyer pay for the shipment. Double-liquid valve should be
bought at its cost price.
2.3If the parts of the machine become broken past warranty , the
parts replacement should be shouldered by buyer.
