Automatic Glue Potting Machine With Conveyor Partner

Ask Lasest Price
Brand Name :	D&H
Model Number :	PGB-650
Certification :	CCC, FDA, RoHs, ISO, CE
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	50PCS / Month

Add to Cart

Product Details
Company Profile

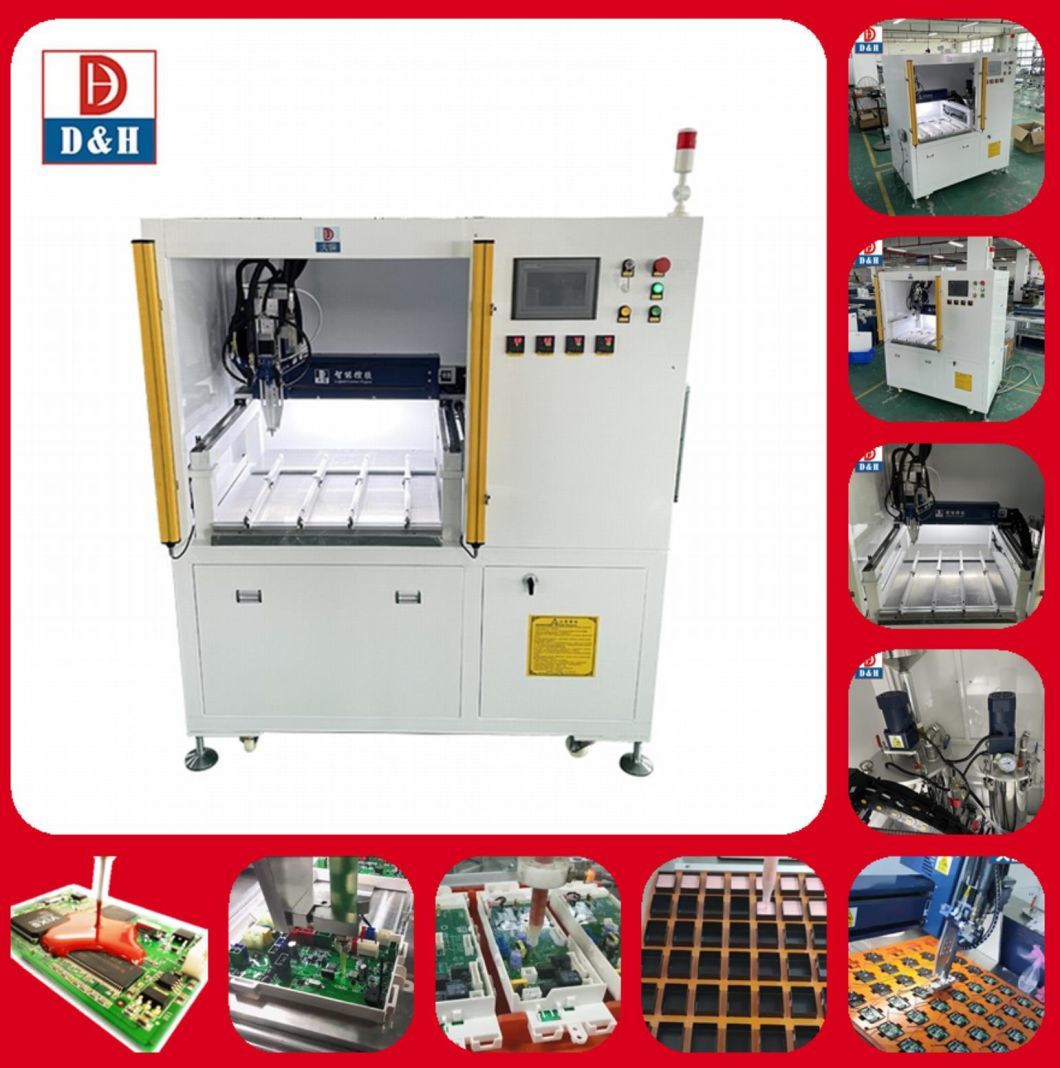

Automatic Glue Potting Machine With Conveyor Partner

Why Choose us !

Where to buy epoxy machine ?

We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.

Potting and encapsulation is the process of embedding products & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed. Encapsulation of parts will stop corrosion of metals and reduce damage caused by vibration and mechanical stress.

We offer automatic ,se-mi automatic fluid dispensing potting machine and the related production line and vacuuming systems.

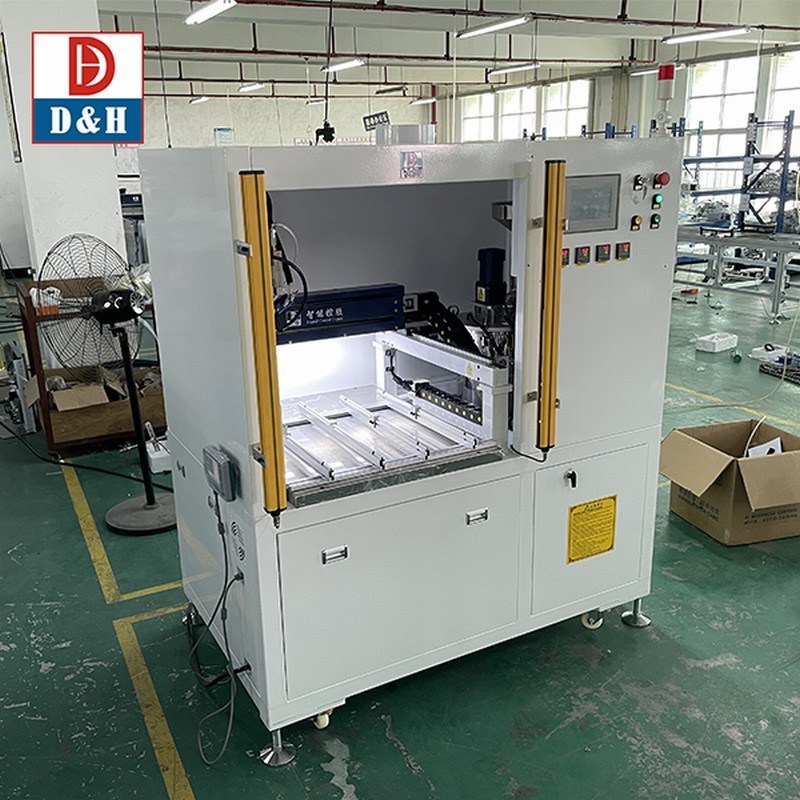

Automatic Epoxy Resin Potting Machine Epoxy Adhesive Machine Epoxy Auto Machine

Automatic Epoxy Resin Potting Machine Epoxy Adhesive Machine Epoxy Auto Machine

Introduction :

1.Working Area: controlled by PLC module and MCGS touch screen.
2.High precision valve: high speed, glue off clean, no glue drawing, no dropping.
3. Gear pump special for transparent glue.
4. Mix glue A & B more evenly; no more or no less for agent B.

Working principle :
Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.

Tank system technology:

1 Stainless panel vacuum pressure tank which can bear negative pressure of inner tank .
2 Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature.

3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level .
4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure .
5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve.
6 Tank with heating panel which can preheat materials to assure good flowability.
7 Tank with artificial feeding mouth that can be added glue appropriately by hand .
8 Tank with silica-dryer which can prevent material especially PU from crystallization .
Automatic Epoxy Resin Potting Machine Epoxy Adhesive Machine Epoxy Auto Machine

D&H Pump technology
1 Two cylinder plunger pumps work by durable motors.
2.The biggest flow volume :24g/s,Repetition accuracy:0.2g.
3.Also Suitable for high viscosity glue: 50cps~35000cps.
4. Suitable for big flow dispensing or slight flow dispensing.
5. Suitable for frequent start and stop dispensing.
6. Anti-wear, Anti-corrosion, super long life time.
Automatic Epoxy Resin Potting Machine Epoxy Adhesive Machine Epoxy Auto Machine

Valve technology

1.Two cylinder plunger pumps work by durable motors.
2.The biggest flow volume :24g/s,Repetition accuracy:0.2g.
3.Also Suitable for high viscosity glue: 50cps~35000cps.
4. Suitable for big flow dispensing or slight flow dispensing.
5. Suitable for frequent start and stop dispensing.
6. Anti-wear, Anti-corrosion, super long life time.

Teach data

Working area	480mm×480mm×100mm
Processing craft	Dot ,line , arc , circle
Speed	0---500mm/s
Movement accuracy	≤±0.03mm
Mixing ratio	1 :1 ---10:1
Gluing-out speed	0.5g/s --12g/s per single pump
Repeated accuracy	≤±2%
Program memory	999pcs
Adhesive viscosity	300cps~20000cps
Operating mode	Manual /Automatic / third party signal
Proportional control	PLC/ double cylinder plunger pump
Flow control	Digital input
Program	Teaching program
Automatic controlling system	Touch screen / hand terminal
Mixing way	Dynamic mixing
Cleaning way	Self-cleaning
AB Tank	Stainless tank A (25L) B(25L)
	Vacuum defoamation(-0.1MPa),4L/s
	Liquid level sensor and sound light alarm
	Tank stirring
Power supply	220V/50Hz/3500W
Input air pressure	0.4MPa-0.7MPa
Dimension	1550mm×1960mm X1327mm
Materials	Industrial aluminium+stainless material

PLC controlling System
1 Dispensing volume is controlled by the speed of pump's motors ; Glue speed adjustable within the speed range .
2 Machine with detecting function that detect the speed and running time of pumps to ensure the ratio reliability.
3 Adjustable gluing-out volume make sure glue A/B dispense out at the same time from glue valve to get better glue mixing effect .
4 Machine with gel resistance calculator , which prevent the mixture curing inside .
5 You can set single gluing-out and steady gluing-out function to meet up with your different process requirement .
6 Whole machine system and function is controlled by Panasonic PLC and MGCS touch screen .
7 Reserved PLC communication interface, which easy connecting with outside device .
8 Equipped with a safety lock to prevent staff from wrong operation .

Application:
Automatic Epoxy Resin Potting Machine Epoxy Adhesive Machine Epoxy Auto Machine

1.Potting&Encapsulation &Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts....

2.Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling ....

3.Bonding&doming : LCD screen ,LOCA bonding,ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....

Applicable materials
Automatic Epoxy Resin Potting Machine Epoxy Adhesive Machine Epoxy Auto Machine

1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .

Service Term

1.Staff training

Seller is responsible to provide machine's training including installation, debugging, maintenance to assured customer can totally use the operation skills and well acknowledge maintenance of machine .

2.Maintenance Service

2.1Seller provide one year warranty period and support free maintenance service during warranty . Software upgrade service is provided for a long life time.
2.2 In case parts of the machine become broken within the warranty because of non-artificial factors, we send you part replacement free, buyer pay for the shipment. Double-liquid valve should be bought at its cost price.
2.3If the parts of the machine become broken past warranty , the parts replacement should be shouldered by buyer.

Workshop Cornner of factory
Automatic Epoxy Resin Potting Machine Epoxy Adhesive Machine Epoxy Auto Machine
