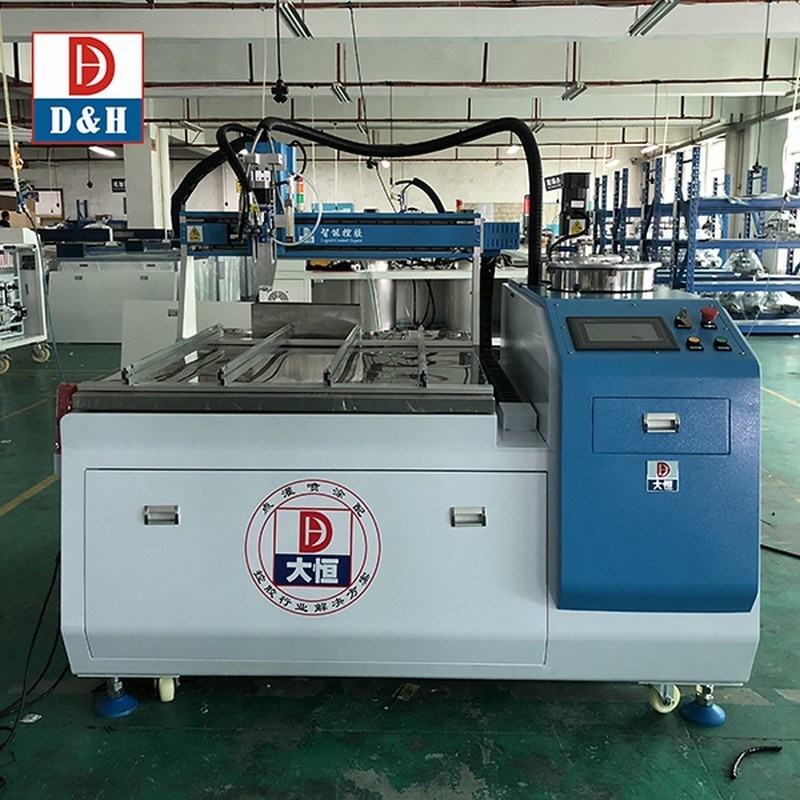

    Electric Driven High Precision Transformer Potting Dispenser for Electric Transformer


    Auto Potting Transformer machine electric Transformer potting dispenser
    We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.

    Potting and encapsulation is the process of embedding products & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed. Encapsulation of parts will stop corrosion of metals and reduce damage caused by vibration and mechanical stress.
    We offer automatic ,se-mi automatic fluid dispensing potting machine and the related production line and vacuuming systems .

    Auto Potting Transformer Machine Electric Transformer Potting DispenserAuto Potting Transformer Machine Electric Transformer Potting DispenserAuto Potting Transformer Machine Electric Transformer Potting DispenserIntroduction :
    1. Working Area: controlled by PLC module and MCGS touch screen. 2.High precision valve: high speed, glue off clean, no glue drawing, no dropping. 3. Gear pump special for transparent glue. 4. Mix glue A & B more evenly; no more or no less for agent B.
    Working principle :
    Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.

    Tank system technology:
    Auto Potting Transformer Machine Electric Transformer Potting Dispenser
    1. Stainless panel vacuum pressure tank which can bear negative pressure of inner tank .
    2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature.
    3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level . 4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure .
    5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve.
    6 Tank with artificial feeding mouth that can be added glue appropriately by hand . 7 Tank with silica-dryer which can prevent material especially PU from crystallization .

    D&H Pump technology

    1. Two cylinder plunger pumps work by durable motors.
    2.The biggest flow volume :24g/s,Repetition accuracy:0.2g.
    3.Also Suitable for high viscosity glue: 50cps~35000cps.
    4. Suitable for big flow dispensing or slight flow dispensing.
    5. Suitable for frequent start and stop dispensing.
    6. Anti-wear, Anti-corrosion, super long life time.

    Auto Potting Transformer Machine Electric Transformer Potting Dispenser


    Valve technology

    1. Two cylinder plunger pumps work by durable motors.
    2.The biggest flow volume :24g/s,Repetition accuracy:0.2g.
    3.Also Suitable for high viscosity glue: 50cps~35000cps.
    4. Suitable for big flow dispensing or slight flow dispensing.
    5. Suitable for frequent start and stop dispensing.
    6. Anti-wear, Anti-corrosion, super long life time.
    Auto Potting Transformer Machine Electric Transformer Potting DispenserPLC Operation Controlling System
    1 Dispensing volume is controlled by the speed of pump's motors ; Glue speed adjustable within the speed range .
    2 Machine with detecting function that detect the speed and running time of pumps to ensure the ratio reliability.
    3 Adjustable gluing-out volume make sure glue A/B dispense out at the same time from glue valve to get better glue mixing effect .
    4 Machine with gel resistance calculator , which prevent the mixture curing inside .
    5 You can set single gluing-out and steady gluing-out function to meet up with your different process requirement .
    6 Whole machine system and function is controlled by Panasonic PLC and MGCS touch screen .
    7 Reserved PLC communication interface, which easy connecting with outside device . 5.8 Equipped with a safety lock to prevent staff from wrong operation .
    Item No.Machinery partsFunction description
    1Main bodyCold-Roll Steel /Metal plate/aluminium
    2Three-axis moment platformsynchronous beltXY Z axis silk-rod
    3Step motor/driverThree axis motor
    4Movement sensorThree-axis limit
    BearingThree axis and metering pump
    5Glue supplying systemA/B tanksStainless vacuum tank
    6A/B glue liquid level sensorball float type liquid level switch
    7A glue stirrerThis function select base on glue feature; to prevent the glue from sediment .
    8A/BTeflon glue pipeAntirosion,stable flexibility
    9Y type filterPrevent impurity come into glue pipe and pump and lock
    10Vacuum defoamationMake vacuum degas to AB glue that with vacuum negative pressure glue refilling function
    11Constant temperature heaterA glue tank /B glue tank constant temperature heater (room temperature 80°C degree)
    12Metering&Mixing systemMetering PumpDouble cylinder plunger pump
    13Dynamic mixingGlue mixing &stirring with self-detecting function
    14Self-cleaningCleaning the mixture part of the machine
    15A B monitorA B flow meter(optional) & non-return valve
    16Controlling systemPLCProgrammable logic controller, glue application control center
    17Pneumatic componentSolenoid valve/pressure regulating valve
    18Electronic componentRelay/contactor/power supply/Temperature controller/earth leakage circuit breaker/button switches and so on
    19Touch screen control panelTouch control panel
    20OthersFixturesCustomized as per fixture

    Applications:
    Auto Potting Transformer Machine Electric Transformer Potting DispenserAuto Potting Transformer Machine Electric Transformer Potting Dispenser
    1.Potting&Encapsulation &Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts....
    2.Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling .... 3.Bonding&doming : LCD screen ,LOCA bonding,ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....
    Auto Potting Transformer Machine Electric Transformer Potting Dispenser
    Auto Potting Transformer Machine Electric Transformer Potting Dispenser
    Applicable materials
    Auto Potting Transformer Machine Electric Transformer Potting Dispenser
    Service Terms
    1, Staff training Seller is responsible to provide machine's training including installation, debugging, maintenance to assured customer can totally use the operation skills and well acknowledge maintenance of machine .
    2,Maintenance Service
    2.1Seller provide one year warranty period and support free maintenance service during warranty . Software upgrade service is provided for a long life time.
    2.2 In case parts of the machine become broken within the warranty because of non-artificial factors, we send you part replacement free, buyer pay for the shipment. Double-liquid valve should be bought at its cost price. 2.3If the parts of the machine become broken past warranty , the parts replacement should be shouldered by buyer.


    Factory workshop corner
    Auto Potting Transformer Machine Electric Transformer Potting Dispenser
