Automatic AB two parts pu potting Machine ab glue dispenser insulating meter mixing machine

Guangzhou Zhengqi Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Automatic AB two parts pu potting Machine ab glue dispenser insulating meter mixing machine from wholesalers

    Buy cheap Automatic AB two parts pu potting Machine ab glue dispenser insulating meter mixing machine from wholesalers
    • Buy cheap Automatic AB two parts pu potting Machine ab glue dispenser insulating meter mixing machine from wholesalers
    • Buy cheap Automatic AB two parts pu potting Machine ab glue dispenser insulating meter mixing machine from wholesalers
    • Buy cheap Automatic AB two parts pu potting Machine ab glue dispenser insulating meter mixing machine from wholesalers
    • Buy cheap Automatic AB two parts pu potting Machine ab glue dispenser insulating meter mixing machine from wholesalers
    • Buy cheap Automatic AB two parts pu potting Machine ab glue dispenser insulating meter mixing machine from wholesalers

    Automatic AB two parts pu potting Machine ab glue dispenser insulating meter mixing machine

    Ask Lasest Price
    Brand Name : D&H
    Model Number : PGB-1200
    Certification : CCC, FDA, RoHS, ISO, CE
    Price : USD 19000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000/Year
    Delivery Time : 5-8 Working days
    • Product Details
    • Company Profile

    Automatic AB two parts pu potting Machine ab glue dispenser insulating meter mixing machine

    ITEM
    Parameter
    Mixing ratio
    1:1--10:1 adjustable
    Working range
    700*700*100mm
    Displacement speed
    250mm/s(speed)
    Out-glue speed
    1-12g/s per single pump
    Accuracy
    ±2%(output volume)±2%(mixing)
    tolerance
    ≤0.2mm
    Flow control
    Digital input
    Program memory
    99pcs-999pcs
    Motion trail
    Dot , line ,curve ,circle
    Automatic controlling system
    Touch screen (to achieve program programming, modification, storage and so on
    Out-glue control system
    AB glue back suction valve, achieve AB glue independent operation
    Programmatically
    Tech programming/or computer systems (Micro software Windows 7,Windows10 optional)
    Mixing method
    dynamic mixing
    Power supply
    220V/50Hz/1500W without heating
    Air source
    0.5-0.8Mpa
    Viscosity range
    50-20000cps
    Outer dimension
    1500L*1200W*1600H mm
    A tank
    10L 25L 40L stainless tank(optional)
    B tank
    10L 25L 40L stainless tank(optional)
    Others
    AB tank ,A pump,AB pipeline heating function

    3 axis AB part potting machine high speed 2K dosing machine LED strip auto glue dispensing machine dispenser

    The machine will have two tanks for keeping Liquid A & B separately.
    There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data .
    Automatic glue mixing machine is mainly used for a two-component glue( Epoxy/ Silicone/PU,etc adhesive), automatic metering and mixing the ratio by two sets of high precision pumps, supply to a fully mixing design and then dispensing , dosing , dispensing the aimed products .



    * Working principle :

    3 Axis Ab Part Potting Machine High Speed 2K Dosing Machine LED Strip Auto Glue Dispensing Machine Dispenser
    * Applications :

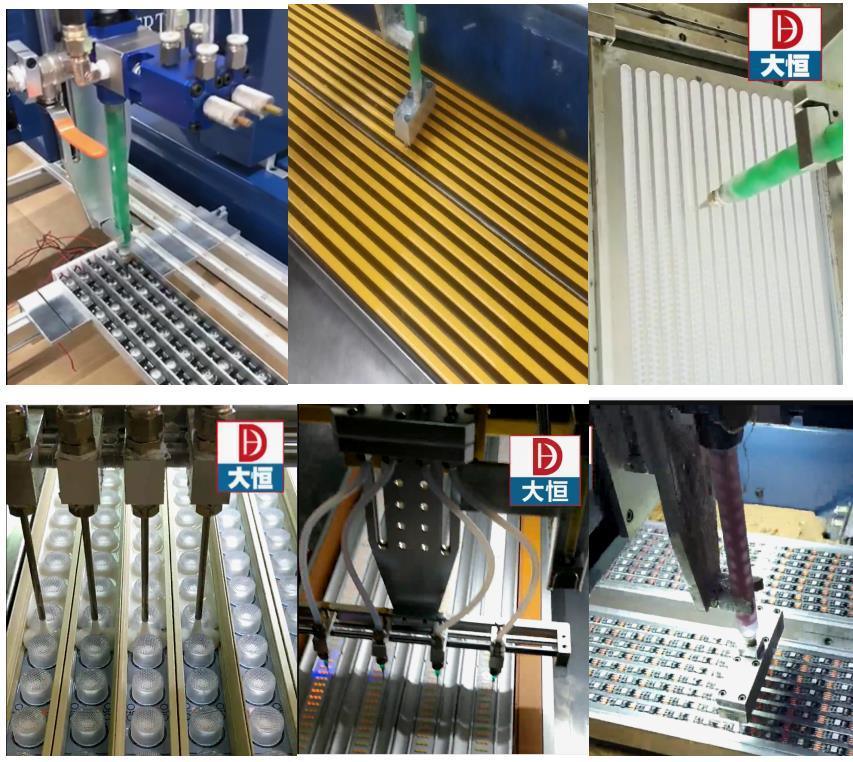

    Industry: Led rigid light , led aluminium profile , Led screen , led display module , led panel , led sign board ,led ad , capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast,PCB boards, water pumps ,power supply and other electronic products and product or parts where want encapsulation &potting demanded.
    3 Axis Ab Part Potting Machine High Speed 2K Dosing Machine LED Strip Auto Glue Dispensing Machine Dispenser



    3 Axis Ab Part Potting Machine High Speed 2K Dosing Machine LED Strip Auto Glue Dispensing Machine Dispenser
    * Applied materials :
    Epoxies , Urethane(PU) or Silicone .
    Two components glue, AB glue, AB part glue, silicone, epoxy resin, polyurethane;
    All kinds of two-component mixed glues with required ratio, such as epoxy resin AB glue, polyurethane, silica gel, PU glue,flocking glue, paint, etc.

    3 Axis Ab Part Potting Machine High Speed 2K Dosing Machine LED Strip Auto Glue Dispensing Machine Dispenser
    * Company profile :
    3 Axis Ab Part Potting Machine High Speed 2K Dosing Machine LED Strip Auto Glue Dispensing Machine Dispenser

    3 Axis Ab Part Potting Machine High Speed 2K Dosing Machine LED Strip Auto Glue Dispensing Machine Dispenser
    *Certificates & Core technology
    3 Axis Ab Part Potting Machine High Speed 2K Dosing Machine LED Strip Auto Glue Dispensing Machine Dispenser3 Axis Ab Part Potting Machine High Speed 2K Dosing Machine LED Strip Auto Glue Dispensing Machine Dispenser

    * Global activities
    3 Axis Ab Part Potting Machine High Speed 2K Dosing Machine LED Strip Auto Glue Dispensing Machine Dispenser
    3 Axis Ab Part Potting Machine High Speed 2K Dosing Machine LED Strip Auto Glue Dispensing Machine Dispenser

    *Packing and delivery
    3 Axis Ab Part Potting Machine High Speed 2K Dosing Machine LED Strip Auto Glue Dispensing Machine Dispenser
