    Automatic Dispenser 3 Axis CNC Epoxy Resin Dispensing Machine Glue Ratio 1 1 to 20 1

    Ask Lasest Price
    Brand Name : D&H
    Model Number : PGB-700
    Certification : CCC, CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 unit per month
    Delivery Time : 5-8 Working days
    • Product Details
    • Company Profile

    Automatic Dispenser 3 Axis CNC Epoxy Resin Dispensing Machine Glue Ratio 1 1 to 20 1

    * Please send us inquiry for latest offer, machine TDS and machine working video
    CE Certificated 3 Axis CNC Epoxy Resin Dispensing Machine Automatic Dispenser
    Machine model: PGB-700
    1. Patented Dual plunger pump for high precision metering and dispensing
    2. High accurate 3 axis system
    3. AB glue mixing ratio and glue speed adjustable
    4. 7" touch screen with English operation software
    5. Both A & B glue auto cleaning
    6. Vacuum pump for degassing and auto glue filling
    CE Certificated 3 Axis CNC Epoxy Resin Dispensing Machine Automatic DispenserCE Certificated 3 Axis CNC Epoxy Resin Dispensing Machine Automatic Dispenser
    Machine ModelPGB-700
    Dimension1500*1100*1600mm
    XYZ working area480*480*100mm / 700*700*100mm / 1200*1200*100mm
    AB ration1:1 to 20:1
    Movement trackDot/Line/Arc/Circle
    3 axis Speed250mm/s
    Glue speed0.5-24g/s
    Accuracy3 axis 0.1mm (repeatability), 2% dispensing, 2% mixing
    Program99pcs
    Metering pump3.6cc gear pump / 48cc screw pump / 200ml dual plunge pump
    Viscosity<30,000 cps
    Operation softwarePatent English operation software
    Flow controlDigital input
    3 axis Programming methodTeaching programming
    Automated control systemPLC / Touch screen
    Glue control systemAB glue suction valve to achieve independent operation of AB glue
    Mixed modeDynamic and static optional, instant mixing
    Glue tankStainless steel 40L, 25L, or 10L
    Input air pressure0.5-0.7 Mpa
    Vacuum pump4L/S
    Cleaning liquid tankStainless steel 7L
    Power supply220V/380V 1200W (not including heating power
    Main Spare PartsquantityBrand
    PLC1 setPanasonic
    Software system1 setDaheng patent
    Industrial human-computer interface touch screen1 pcMCGS
    Metering pump motor / Driver2setsLakeside
    Photoelectric proximity switch8 setsYAMATAKE
    Metering pump bearing4 setsNSK
    Pneumatic component (solenoid/pressure regulating
    valve/Pneumatic duplex)

    pcs

    Air tac
    Electronic component (relay/contactor/power
    supply/leakage switch)

    pcs

    CHNT
    Synchronous belt2 setsPMI-GROUP
    Motor/driver2 setsLakeside
    Z axis1 setAir tac
    AB tank stirring motor2 pcsDDK
    metering pump1 setDaheng patent
    metering pump1 setDaheng patent
    Dynamic double liquid valve1 setDaheng patent
    High quality Glue tube2 pcsMade in China

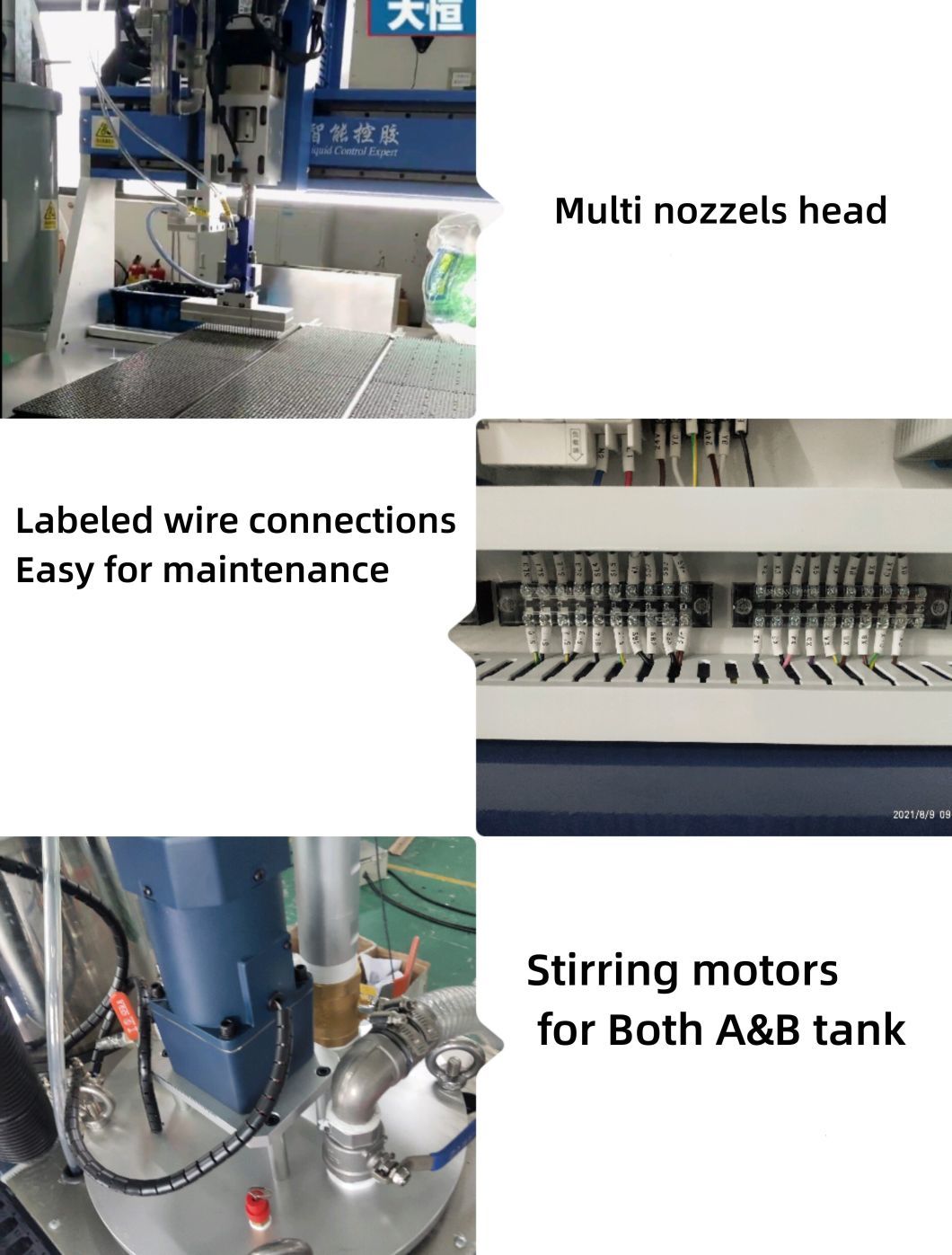

    CE Certificated 3 Axis CNC Epoxy Resin Dispensing Machine Automatic Dispenser


    CE Certificated 3 Axis CNC Epoxy Resin Dispensing Machine Automatic DispenserCE Certificated 3 Axis CNC Epoxy Resin Dispensing Machine Automatic Dispenser

    CE Certificated 3 Axis CNC Epoxy Resin Dispensing Machine Automatic DispenserCE Certificated 3 Axis CNC Epoxy Resin Dispensing Machine Automatic DispenserCE Certificated 3 Axis CNC Epoxy Resin Dispensing Machine Automatic Dispenser

    FAQ

    1.What's the product range?

    Glue dispensing machine, glue potting machine, Vacuum chamber glue potting machine, UV glue dispensing machine

    2.Are you a manufacture?

    Yes, we are in Guangzhou near Shenzhen

    3.What is the minimum quantity for order?

    1 pcs for order.

    4.Do you have stock product to sell?

    Maybe , It's depend on which machine ,you like?

    5.Do you inspect the finished products?

    Yes, Each step of production products will be camed out inspection by QC department before shipping.

    6.How do you ship the finished products?

    By Sea ,

    By Plane ,

    By courier, TNT , DHL, Fedex, UPS Etc .

    7.What's the Payment term?

    Payment term: T/T before shipment.

    We accept payment via the Paypal /Western union/TT, you can choose as you like.

    8.What's the delivery time?

    Within 7 days after get the payment .
