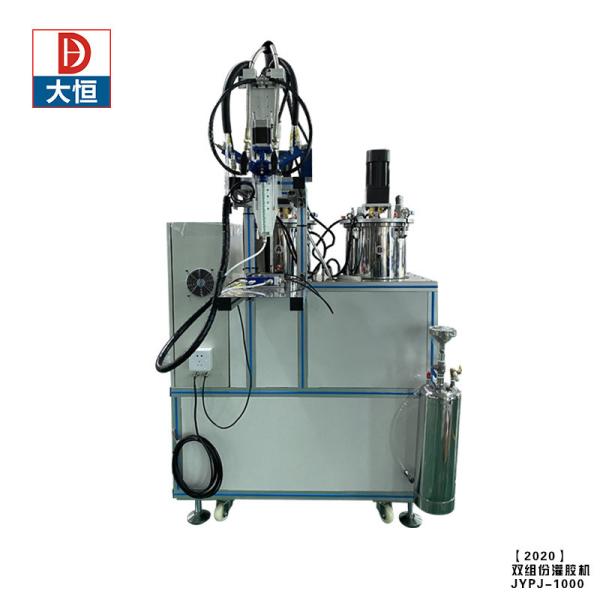

    Electric Driven Vertical AB Epoxy Resin LED PCB Vacuum Potting Machine

    Ask Lasest Price
    Supply Ability : 50PCS Per Month
    Certification : CE
    • Product Details
    • Company Profile

    Electric Driven Vertical AB Epoxy Resin LED PCB Vacuum Potting Machine

    Factory manufacture various ab epoxy resin automatic distribution led and pcb vacuum potting machine

    Factory Manufacture Various Ab Epoxy Resin Automatic Distribution LED and PCB Vacuum Potting Machine
    Nowadays a modern production without two-component materials is unimaginable. Particularly in the automotive industry, the electronics industry and the field of solar technology. But there is an increasing use of adhesives, sealants, fillers and insulation comprising two components (resin and curing agent), too. For example in the production of led light encapsulation, electronic part potting, filter, lable stickers, articles of daily use and even clothes.

    Only when the two components are mixed in the correct ratio they cure and achieve their ultimate strength. At the time they are about to be used at the production site. The primary goal for the optimum automation of such applications is not only dosing precision or dispensing precision. But also strict adherence to the mixing ratio. With our special mixing head from our metering components we ensure that the exact mixing ratio is retained from the very start to the very end of the dosing procedure. Even where very small quantities are concerned.


    I.Machine description and working principle

    Automatic glue mixing and dispenser machine is mainly used for a two-component glue( Epoxy/ Silicone/PU,etc adhesive), automatic metering and mixing the ratio of glue. The glue are stored in two barrels separately, according the glue weight ratio and volume demand automatic metering by two sets of precision pump, supply to a mixing device fully mixing, and then potting/dispensing the desired products.

    II.Main Function:

    1.Automatic metering and mixing

    2.Manual Gluing

    3.Auto alarm for lack of material or full material

    4.Gluing ratio and quantity adjustable

    5.Auto cleaning

    6.Glue tank Vacuum Defoaming (Optional)

    7.Glue barrels,metering pump,glue pipe can be heating (Optional)


    III.Specification:

    Model No:

    PJL-100

    Mixing Ratio

    100:100-10:100(1:1-1:10) Adjustable

    Metering precision

    ±1%

    Outflow speed

    1g/sec-15g/sec

    Mixing precision

    ±1%

    Mixing mode

    Dynamic mixing /Static mixing

    Glue Viscosity

    Lower than 20000 CPS(mPa·s)

    Control mode

    PLC + Touch Screen

    Control system

    Independent R&D

    Measuring mode

    Stepping motor/High-precision, wear-resistant,long-life Gear pump

    Working voltage

    AC 220V 50Hz/60Hz

    Power requirement

    3.55KW

    Air pressure requirement

    4.5-8KG

    Machine Dimension

    1500(L)*1200(W)*1500(H)mm

    Weight

    approx 260 KG

    Work environment

    Humidity: 20%~98%RH; Temperature: 0~+40°c


    Suitable Material: For waterproof, adhesive, fixed two-component adhesive.

    Such as: Crystal or less additive glue --Silicone, epoxy, polyurethane(PU), etc.

    Applications:LED products ,Crafts,Electronic components

    Such as:Wall washer light, LED bar, LED strip, Ads module, Sensor, Photovoltaic module, Photovol­taic inverter .etc

    IV:Application
    Factory Manufacture Various Ab Epoxy Resin Automatic Distribution LED and PCB Vacuum Potting Machine

    ModelPGB-700Voltage220V-380V
    XYZ axis700*700*80(mm)Applicationled,electronic,filter
    Glue supportSilicone, epoxy resin, urethaneCertificationCE, RoHS
    Power3600wWarranty1years
    Item Namemixing and dispensingFunctionDC 12V-14V
    Ratio support1:1 to 10:1MOQ1 Piece
    Gluing Speed5-66g/5s AdjustablePricedepends your glue feature
    Air Pressure:0.5-0.7MpaPortHuangpu
    V, packing
