    CCD Function Positioning Automatic Visual Glue Dispenser Machine with Electric Driven

    Ask Lasest Price
    Brand Name : D&H
    Model Number : PGV501S
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50PCS Per Month
    Delivery Time : 5-8 Working days
    • Product Details
    • Company Profile

    CCD Function Positioning Automatic Visual Glue Dispenser Machine with Electric Driven

    1) Function Princple
    CCD Function Positioning Automatic Visual Glue Dispenser Machine

    2)
    The role of Visual in dispensing technique:
    CCD Function Positioning Automatic Visual Glue Dispenser Machine

    a) Before dispensing , product can be located quickly and dispensing track shall be put into form automatically ;

    (b) Dispensing dots shall be compared and measured to check the uniformity of shape ,dimension and color of the dots after dispesing .

    (3) machine Charateristics:
    CCD Function Positioning Automatic Visual Glue Dispenser Machine

    (a) Angle free dispensing .Product can be placed on worktable at will without special tooling fixture involved .

    (b) Independent and fixed constant temperature system. Heating device are installed on dispensing head and plate to conduct special process such as hot dispensing with cold glue or cold dispensing with hot glue in cold season .

    (c) Loading and Moving mechanism on granite platform . This stone platform ensures great stability of movement and promotes movement precision without deformation .

    (d) Adjustable illuminant with full chromatography .Full chromatography illuminant can be adjusted independently and continuously , from which any visual light can be picked to promote visual recognition rate and accuracy of product.

    (e) Any Dispensing track can be set accordinly . Dispensing track on the screen can be pointed through mouse , avoiding compliance operations on demonstrator and shorten the time of product's introduction.

    (4) Positionining
    CCD Function Positioning Automatic Visual Glue Dispenser Machine

    Ratio 1;1- 10:1 low ,medium ,thickness viscosity fluid liquid .

    shot size: 0.1cc- 10cc.

    Weldo high precision metering and mixing machine is applied pneumatic system different with traditional gear metering and mixing pump.Weldo mixing machine is for lower , medium, thickness adhesive , resins and epoxies precision to handle the metering & mixing of component parts. Adapt to variety of two component AB glue 1:1-1:3 widely used in the relay ,energy saving lamps,LED ,capacitor ,souvenir and jewlry etc.

    Function:

    CCD Function Positioning Automatic Visual Glue Dispenser Machine

    1. Metering and Mixing Machine reaction is fast and constantly metering and mixing two component adhesive to transfer the adhesive to dispensing machine quickly .

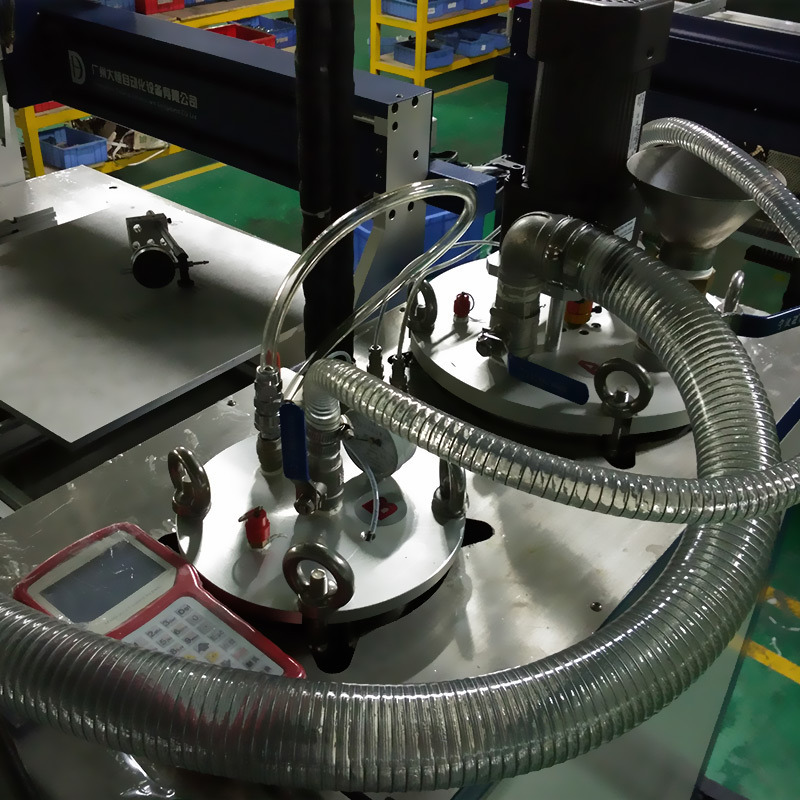

    2.The machine is installed chemical A and Chemical B barrel .Constant temperature heating device are installed on whole mixing and transporting system ensure glue flowing evenly and hot dispensing .

    3. The machine has an automatic cleaning function.

    4. The automated -cycling function can reduce the labor instensity and increases the production .

    5. PLC controlled , touch screen interface , simple and easy operation .
    Application Scope:
    CCD Function Positioning Automatic Visual Glue Dispenser Machine

    Glue mixing ratio

    100:100-100:10 Optional

    Working area

    600(X)*600(Y)*100mm(Z)(effective:400mm(X))

    Working path

    Dot, line , arc , circle

    Positioning method

    CCD Visual capture positioning

    Vision system

    Visual capture and positioning system software

    Motor

    Servo motor (Japan), lead screw + slider (Taiwan brand)

    Production line function

    Optional matching function of production line (customized production line according to customers' products)

    Speed

    500mm/s(displacement speed)1-12ml/s(Single pump glue rate)

    Accuracy

    ±0.03mm (repeatability)±2%(potting)±2%(mixing)

    Glue discharge

    Automatic origin/fixed point glue discharge

    safety

    Front door/safety grating

    Program memory

    99pcs

    Input air pressure

    0.5MPa-0.7MPa

    Viscosity

    50cps~Paste

    Operation mode

    Manual /Automatic

    Ratio

    PLC/ plunger pump/gear pump/screw pump

    Flow

    Digital input

    Teaching mode

    Teaching programming

    automatic control system

    PC,Touch screen (realize program programming, modification, storage, etc

    Out-glue control system

    AB glue suction valve, realize AB glue independent operation

    Mixing mode

    Dynamic and static optional, instant mixing, convenient cleaning


    Tank

    Stainless Steel(40L),(25L),(10L)optional

    Power supply

    220V/50Hz/1.5kW(without heater)

    Dimension

    1900mm×1650 mm×2100mm

    Line body height

    850-950(Can be customized)

    Line body width

    Max 550mm(Vision 400mm)(can be customized)

    The conveyor line body

    Belt/double chain / roller

    Line body load

    As per production

    Positioning

    clamping position

    Blocking cylinder

    3 pcs (default)
