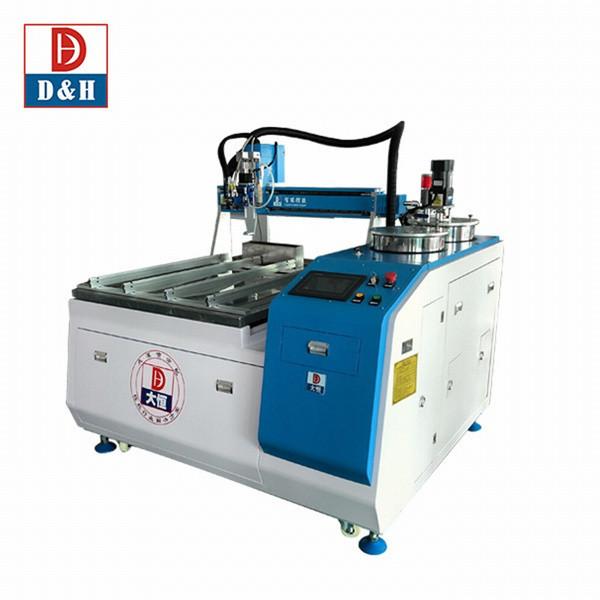

    LED Module Glue Dispensing Robot for Vertical Installation Manufacturing

    Ask Lasest Price
    Certification : CCC, FDA, RoHS, ISO, CE
    Brand Name : D&H
    Model Number : PGB-700
    Price : USD 19000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000/Year
    Delivery Time : 5-8 Working days
    • Product Details
    • Company Profile

    LED Module Glue Dispensing Robot for Vertical Installation Manufacturing

    Tech Data
    ITEM
    Parameter
    Mixing ratio
    1:1--10:1 adjustable
    Working range
    700*700*100mm
    Displacement speed
    250mm/s(speed)
    Out-glue speed
    1-12g/s per single pump
    Accuracy
    ±2%(output volume)±2%(mixing)
    tolerance
    ≤0.2mm
    Flow control
    Digital input
    Program memory
    99pcs-999pcs
    Motion trail
    Dot , line ,curve ,circle
    Automatic controlling system
    Touch screen (to achieve program programming, modification, storage and so on
    Out-glue control system
    AB glue back suction valve, achieve AB glue independent operation
    Programmatically
    Tech programming/or computer systems (Micro software Windows 7,Windows10 optional)
    Mixing method
    dynamic mixing
    Power supply
    220V/50Hz/1500W without heating
    Air source
    0.5-0.8Mpa
    Viscosity range
    50-20000cps
    Outer dimension
    1500L*1200W*1600H mm
    A tank
    10L 25L 40L stainless tank(optional)
    B tank
    10L 25L 40L stainless tank(optional)
    Others
    AB tank ,A pump,AB pipeline heating function

    Led module robot glue dispensing manufacturing machinery automated glue dispensing robot machine


    The machine will have two tanks for keeping Liquid A & B separately.
    There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data .
    Automatic glue mixing machine is mainly used for a two-component glue( Epoxy/ Silicone/PU,etc adhesive), automatic metering and mixing the ratio by two sets of high precision pumps, supply to a fully mixing design and then dispensing , dosing , dispensing the aimed products .



    * Working principle :

    LED Module Robot Glue Dispensing Manufacturing Machinery Automated Glue Dispensing Robot Machine
    * Applications :

    Industry: Led screen , led display module , led panel , led sign board ,led ad , capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast,PCB boards, water pumps ,power supply and other electronic products and product or parts where want encapsulation &potting demanded.

    LED Module Robot Glue Dispensing Manufacturing Machinery Automated Glue Dispensing Robot Machine


    LED Module Robot Glue Dispensing Manufacturing Machinery Automated Glue Dispensing Robot Machine

    General description of the machine

    PGB-700 ab dosing dispensing machine precisely metering, mixing and dispensing two-component medium to low-viscosity materials for potting, dispensing ,sealing, casting ,encapsulation and filling.
    For variable ratio dispensing, the system handles ratios from 1:1 to 10:1.
    The system is composed of AB tanks, metering pumps and motor, mixing pipe, dual valve, dynamic motor for dynamic stirring and 3-axis robotic platform.
    Two kinds of component materials are separately before they mix in mixing tube to avoid glue cure in system. Dispensing valve is with suck-back function to keep thin fluid from dripping.

    Introduction :

    1. Working Mode: controlled by PLC module and MCGS touch screen.
    2.High precision valve: high speed, glue off clean, no glue drawing, no dropping. 3. Core metering pump specially design for different material from low to high viscosities. 4. Mix glue A & B more evenly; no more or no less for agent B.

    Working principle :

    Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
    2 Component Glue Dispenser Automat Glue Silicone Dispensing Machine Automatic Gluing Machine
    * Applied materials :
    Epoxies , Urethane(PU) or Silicone .
    Two components glue, AB glue, AB part glue, silicone, epoxy resin, polyurethane;
    All kinds of two-component mixed glues with required ratio, such as epoxy resin AB glue, polyurethane, silica gel, PU glue,flocking glue, paint, etc.

    LED Module Robot Glue Dispensing Manufacturing Machinery Automated Glue Dispensing Robot Machine
    * Company profile :
    LED Module Robot Glue Dispensing Manufacturing Machinery Automated Glue Dispensing Robot Machine

    LED Module Robot Glue Dispensing Manufacturing Machinery Automated Glue Dispensing Robot Machine
    *Certificates & Core technology
    LED Module Robot Glue Dispensing Manufacturing Machinery Automated Glue Dispensing Robot MachineLED Module Robot Glue Dispensing Manufacturing Machinery Automated Glue Dispensing Robot Machine

    * Global activities
    LED Module Robot Glue Dispensing Manufacturing Machinery Automated Glue Dispensing Robot Machine
    LED Module Robot Glue Dispensing Manufacturing Machinery Automated Glue Dispensing Robot Machine

    *Packing and delivery
    LED Module Robot Glue Dispensing Manufacturing Machinery Automated Glue Dispensing Robot Machine
