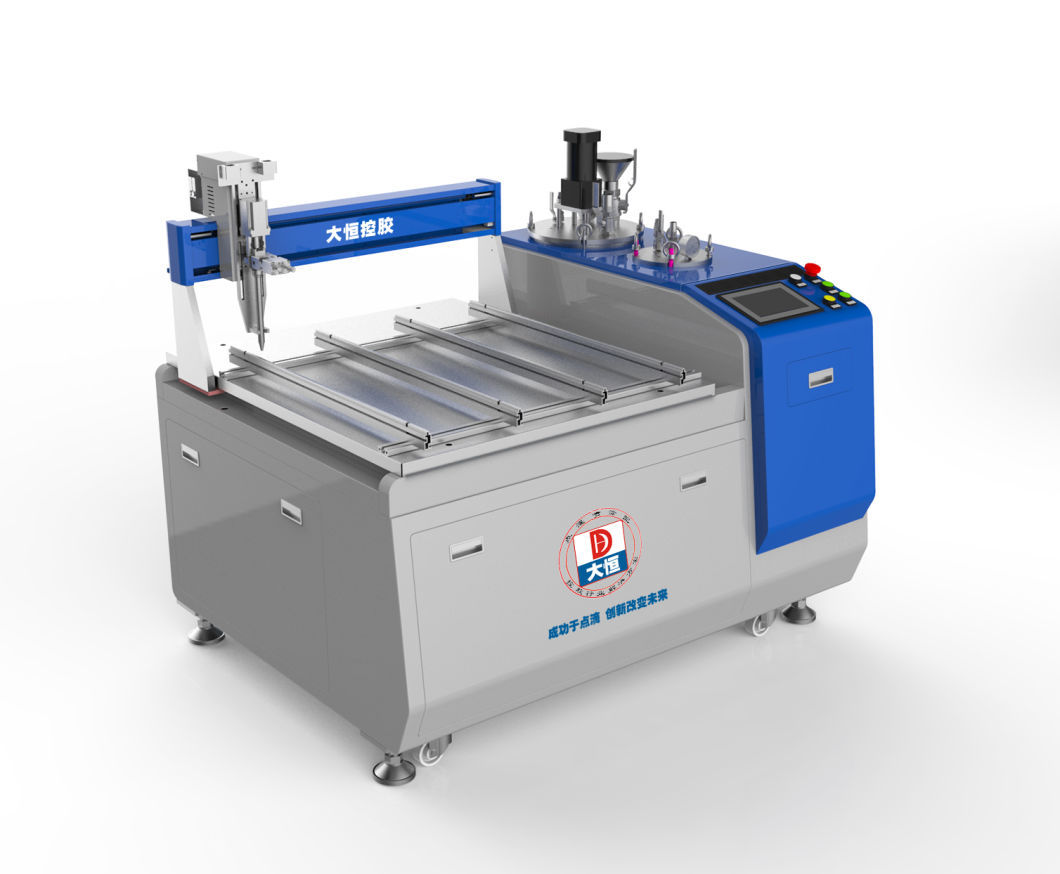

Automatic glue dispensing machine PGB710
Features and Benefits:
1, A system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid possible waste
of glue.
3, Shot size and positioning keep consistent, fast.
4, Good universality makes PGB710 suitable for applications of LED,
electric and others glue potting needed.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert,
filter mode, liquid display device, preventing backflow device and
other functional device.
Application:
Industry: Capacitor, power supply, transformer, ignition coil,
reverse sensor, circuit board, electronic ballast, other electronic
products and LED products where glue potting demanded.
Glue:
Epoxy, silica gel, AB glue, PU and other glue which need matching
Optional Function:
1, evacuation
2, heating
3, Geared pump & plunger piston pump are available; Customers can
choose to needs.
4, Control-card will be chosen to be added in to program to needs.
| Model & Type | PGB-710D Full Auto Gluing Machine Dispenser |
| Certificate | CE, SGS |
| Dimension | 1500x1200x1500mm |
| N.W. | 600kg |
| XYZ Working Area | 700x700x80mm |
| Flow Speed | 0-150g/5s, or customized |
| Moving Speed | 0-300mm per second |
| Glue & Ratio | 1:1 to 20:1, Epoxy, Silicone, PU, UV |
| Repeatability | +/-0.02g |
| Accuracy | +/- 1% |
| Power | AC220V or AC 380V |
| Total Power Consume | 3kw - 5kw |
| Additional Function | Heating, Vacuum, Self-refilling, Self-cleaning |
| Application | LED module, display, LED lights, power supply, driver, motor,
sensor, and transformer and so on^
|
AB potting machine is composed of Five Systems:
- Automatic material-feeding system
- High precision pump metering system
- Dynamic/Static mixing system
- Three-axis motion system
- Programming control system.
AB-component materials flows into the pump through the feeding system (AB tanks) separately by the self-suction force of the
metering pump.
Features&Functions:
Strong versatility / Multiple configuration / High production capacity / High precision- Auto feeding : take use of vacuum pressure to feed materials into A&B tank
separately.
- Tank Stirring : A and B tank configure with stirring motors and blades to prevent
material sediment in the tank bottom .
- Heating : Tank , pipe , pumps are optional with heaters to assure the whole
system can be heating from room temperature to 90°C adjustable.
- Vacuum : A &B tank vacuum for degas the bubble inside material .
- Dynamic mixing : Configuring dynamic motor and mixer to mix A and B fluids evenly.
Advantages:
1,Accurated metering and even mixing helps to avoid the waste of material.
2,Dispensing volume and positioning keep machine work consistent and fast.
3,Good universality
4,Easy to program and operate.
5,Tally function, non-standard mode, primer mode, level alert, filter
mode, liquid display device, preventing back-flow device and other
functional device.
