    CNC 3 Axis AB Glue Potting Silicone Epoxy Resin Glue Automatic Dispenser

    Ask Lasest Price
    Brand Name : D&H
    Model Number : PGB-1560
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50PCS Per Month
    • Product Details
    • Company Profile

    CNC 3 Axis AB Glue Potting Silicone Epoxy Resin Glue Automatic Dispenser

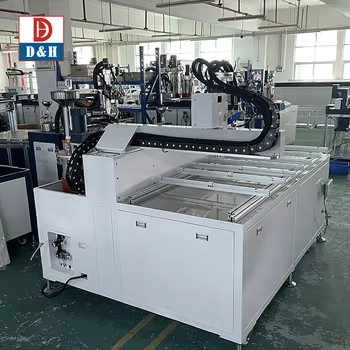

    CNC 3 axis 2K AB glue potting silicone epoxy resin glue dispenser automatic machine

    CNC 3 Axis AB Glue Potting Silicone Epoxy Resin Glue Automatic Dispenser

    CNC 3 Axis AB Glue Potting Silicone Epoxy Resin Glue Automatic DispenserCNC 3 Axis AB Glue Potting Silicone Epoxy Resin Glue Automatic DispenserCNC 3 Axis AB Glue Potting Silicone Epoxy Resin Glue Automatic DispenserCNC 3 Axis AB Glue Potting Silicone Epoxy Resin Glue Automatic Dispenser


    We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped testing room.
    We can handle 1- and 2-component polyurethanes, epoxies,acrylics, silicone, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.
    Potting and encapsulation is the process of embedding electronic components & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions.
    Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed. Encapsulation of parts will stop corrosion of metals and reduce damage caused by vibration and mechanical stress.
    Five systems in AB potting machine:
    1. Automatic material-feeding system
    2. High precision pump metering system
    3. Dynamic/Static mixing system
    4. Three-axis motion system
    5. Programming control system.
    AB-component materials flows into the pump through the feeding system (AB tanks) separately by the self-suction force of the metering pump.

    Features & Functions

    * Auto feeding :take use of vacuum pressure to feed materials into A&B tank separately.
    * Tank Stirring :A and B tank configure with stirring motors and blades to prevent material sediment in the tank bottom .
    * Heating : Tank , pipe , pumps are optional with heaters to assure the whole system can be heating from room temperature to 90°C adjustable.
    * Vacuum : A &B tank vacuum for degas the bubble inside material .
    * Dynamic mixing : Configuring dynamic motor and mixer to mix A and B fluids evenly.
    *Auto cleaning : self-cleaning and fully auto cleaning system assure machine keep in clean without any materials cure inside .

    Advantages:

    1,Accurated metering and even mixing helps to avoid the waste of material.
    2,Dispensing volume and positioning keep machine work consistent and fast.
    3,Good universality
    4,Easy to program and operate.
    5,Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing back-flow device and other functional device.

    Application:

    1. Potting&Encapsulation &Casting: electronics components , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast , motor ,junction box ,switches, art mold ,aviation parts, aerospace parts and so on.
    2. Dispensing&Dosing: LED strip , led lamp , led bulb , aluminum,led screen , display module / medical parts,medical liquid filling and so on ...
    3. Bonding&doming: LCD screen ,LOCA bonding,ABS plastic /
    different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics ect .

    Main Applications in electronics appliances

    Transformer , capacitance , power module , regulating plate ,protection module , generator , pressure
    package , solid relay ,fault indicator , Sensors , junction box , clutch , wave filter , water meter , battery cover , rectifier etc. ...

    Applicable Materials

    CNC 3 Axis AB Glue Potting Silicone Epoxy Resin Glue Automatic Dispenser

    1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials.
    Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, dual-component compound material UV materials and so on .

    • Able to process mixing ratios from 1:1 to 10:1
    • Air-free
    • Straightforward integration with robotics or automation
    • Digitally controlled shot size and flow rate for precision
    • Storage for up to 99 different programs
    • Built-in level monitoring system
    • Material pot life alarm with automatic purge function to maintain fresh material in the mixing nozzle
    • Configured to your material and process
    • Reservoir heating and agitation options keep materials flowable, consistent and ready to use
    • Modular design means easy maintenance and repair

    Applications

    • Electronics and LED potting and encapsulation
    • Casting
    • Form-in-place gasketing
    • Adhesive dots and beads

    Specification:


    ITEM
    Parameter
    Mixing ratio
    1:1--10:1 adjustable
    Working range
    Can be customized
    Displacement speed
    300mm/s(speed)
    Out-glue speed
    1-12g/s per single pump
    Accuracy
    ±2%(output volume)±2%(mixing)
    tolerance
    ≤0.2mm
    Flow control
    Digital input
    Program memory
    99pcs-999pcs
    Motion trail
    Dot , line ,curve ,circle
    Automatic controlling system
    Touch screen (to achieve program programming, modification, storage and so on
    Out-glue control system
    AB glue back suction valve, achieve AB glue independent operation
    Programmatically
    Tech programming/or computer systems (Micro software Windows 7,Windows10 optional)
    Mixing method
    dynamic mixing
    Power supply
    220V/50Hz/1500W without heating
    Air source
    0.5-0.8Mpa
    Viscosity range
    10-30000cps
    A tank
    10L 25L 40L stainless tank(optional)
    B tank
    10L 25L 40L stainless tank(optional)
    Others
    AB tank ,A pump,AB pipeline heating function

    Working Principle

    Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
