Heat Function Two Component AB Glue Mixing Dispensing with Oven Curing Full Product Line

Ask Lasest Price
Brand Name :	Daheng
Supply Ability :	50 Piece/Pieces per Month MOQ=1PCS
Price :	$11,900.00/pieces 1-1 pieces

Add to Cart

Product Details
Company Profile

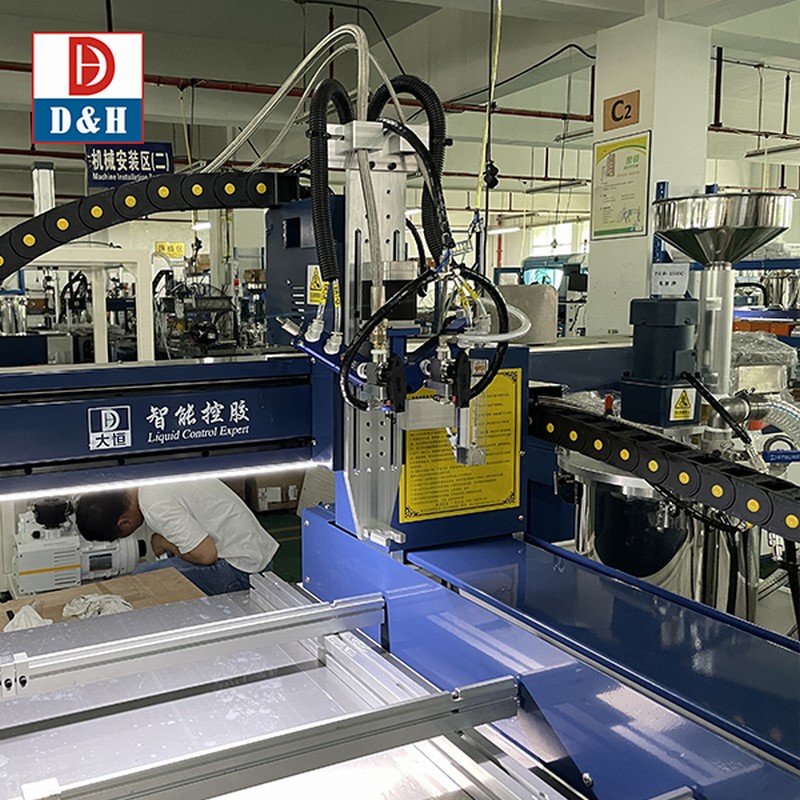

Heat Function Two Component AB Glue Mixing Dispensing with Oven Curing Full Product Line

Machine Description

Two component AB glue mixing dispensing with oven curing full product line

Daheng AB Potting machine helps AB compounds offer superior protection potting to igniters and electronics

Daheng Universal equipment is widely works for epoxies, silicones and polyurethane compounds , we configure different functions for the features of different compound to meet up with the production purposes .

2 Part Silicone plyurethane epoxy potting dispensing machine AB Resins compound dosing , dispensing ,potting system ,2K potting technology AB glue dispensing machine Epoxy dispensing machine

Two-component dispensing machine，Dual-component dispensing machine Meter-mix dispensing machine，Resin dispensing machine Adhesive dispensing system，Dispensing robot with high precision Dispensing valve, Liquid dispenser , Automated dispensing equipment

Heat Function Two Component AB Glue Mixing Dispensing with Oven Curing Full Product Line

Epoxies, silicones and polyurethane are among the most frequently used potting compounds. These can be applied to igniters ，Ignition Coiols ，PCBs,PCBA,capacitors,power electronics, LED lighting, sensors, and more. Some of the desired properties include good adhesion,excellent electrical insulation, thermal stability, super chemical resistance, low shrinkage upon curing, an appropriate coefficient of thermal expansion (CTE), and suitable viscosity for the specific application. Formulations can be blended to provide a balance of these and other properties through selection of resin, agent, and fillers.
Epoxies, silicones and polyurethane are commonly used with fillers to lower shrinkage, enhance dimension stability, and improve abrasion resistance. The use of fillers is the critical factor for obtaining thermal conductivity while retaining electrical resistance.
Besides ,the liquid potting material must flow easily so that it completely covers the component, leaving no voids. If air becomes trapped in the housing, the moisture it contains may cause corrosion — eventually leading to component or product failure.

Daheng equipment with pre-heat functions that helps the pre-heat the AB compound in tank in advance to keep a good flow-ability.Good liquidity helps resin flow into product easily and evenly.

Daheng machine with tank stirring vacuum degas functions ,which can help compounds to remove air bubble easily and arrived the good potting status .

Removing air bubbles is very important.Vacuum degassing remains a critical processing step. The best technique for vacuum degassing is referred to as “bumping degas” which is alternately pulling and relaxing a vacuum in 30- to 60-second cycles.

Machine Configurations

Introduction ：

1. Working Mode: controlled by PLC module and MCGS touch screen.

2.High precision valve: high speed, glue off clean, no glue drawing, no dropping. 3. Core metering pump specially design for different material from low to high viscosities. 4. Mix glue A & B more evenly; no more or no less for agent B.

Working principle ：

Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.

Tank system technology：

1. Stainless panel vacuum pressure tank which can bear negative pressure of inner tank . 2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature. 3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level . 4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure . 5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve.

6 Tank with heater which can preheat materials to assure good flowability . 7 Tank with artificial feeding mouth that can be added glue appropriately by hand . 8 Tank with silica-dryer which can prevent material especially PU from crystallization .

D&H Pump technology

1. Two cylinder plunger pumps work by durable motors. 2.The biggest flow volume :24g/s，Repetition accuracy:0.2g. 3.Also Suitable for high viscosity glue: 50cps~35000cps. 4. Suitable for big flow dispensing or slight flow dispensing. 5. Suitable for frequent start and stop dispensing. 6. Anti-wear, Anti-corrosion, super long life time.

Valve technology

PLC Operation Controlling System

1 Dispensing volume is controlled by the speed of pump’s motors ; Glue speed adjustable within the speed range .

2 Machine with detecting function that detect the speed and running time of pumps to ensure the ratio reliability.

3 Adjustable gluing-out volume make sure glue A/B dispense out at the same time from glue valve to get better glue mixing effect .

4 Machine with gel resistance calculator , which prevent the mixture curing inside .

5 You can set single gluing-out and steady gluing-out function to meet up with your different process requirement .

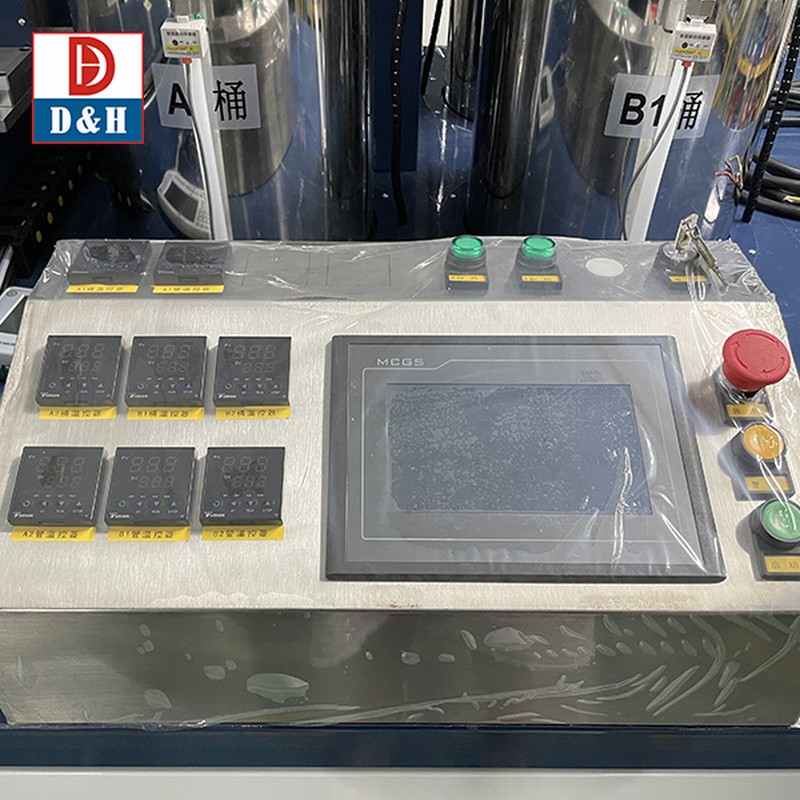

6 Whole machine system and function is controlled by Panasonic PLC and MGCS touch screen .

7 Reserved PLC communication interface, which easy connecting with outside device .

8 Equipped with a safety lock to prevent staff from wrong operation .

Tech Data

ITEM	Parameter
Mixing ratio	1:1--10:1 adjustable
Working range	Can be customized
Displacement speed	300mm/s（speed）
Out-glue speed	1-12g/s per single pump
Accuracy	±2%（output volume）±2%（mixing）
tolerance	≤0.2mm
Flow control	Digital input
Program memory	99pcs-999pcs
Motion trail	Dot , line ,curve ,circle
Automatic controlling system	Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system	AB glue back suction valve, achieve AB glue independent operation
Programmatically	Tech programming/or computer systems (Micro software Windows 7,Windows10 optional)
Mixing method	dynamic mixing
Power supply	220V/50Hz/1500W without heating
Air source	0.5-0.8Mpa
Viscosity range	50-20000cps
A tank	10L 25L 40L stainless tank（optional）
B tank	10L 25L 40L stainless tank（optional）
Others	AB tank 、A pump、AB pipeline heating function

Daheng Two component dispensing potting dosing system ,electronic potting and casting system ；

Epoxy resin electronic products machinery vacuum casting machine pu glue machine automatic ab glue machine adhesive machines

We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.

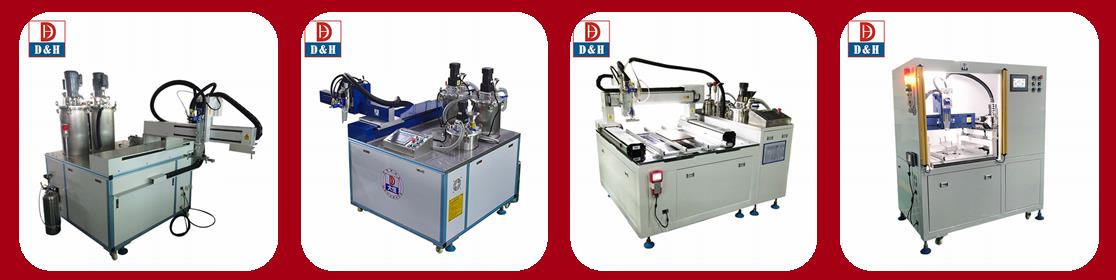

More machine types and designs to suits for different application processes requirements

XYY meter mix movable system (Automatic gluing dispensing machine )

More machine serious are for your optional

Our equipment are designed to mix and dispense adhesives accurately and apply resin to filteraccurately by 3-axis dispensing robot.
Some machines dispense only one mix ratio, while our machine can cover a range of ratios.
The filter manufacturer can quickly recoups the investment through using our equipment , since the high productivity can savings the cost for bulk production.

Application

1.Potting&Encapsulation &Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts.... 2.Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling .... 3.Bonding&doming : LCD screen ,LOCA bonding，ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....

Applicable material

1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .

Our customer cases

Service Term

1、 Staff training Seller is responsible to provide machine’s training including installation, debugging, maintenance to assured customer can totally use the operation skills and well acknowledge maintenance of machine .

2、Maintenance Service 2.1Seller provide one year warranty period and support free maintenance service during warranty . Software upgrade service is provided for a long life time.

2.2 In case parts of the machine become broken within the warranty because of non-artificial factors, we send you part replacement free, buyer pay for the shipment. Double-liquid valve should be bought at its cost price.

2.3If the parts of the machine become broken past warranty , the parts replacement should be shouldered by buyer.
