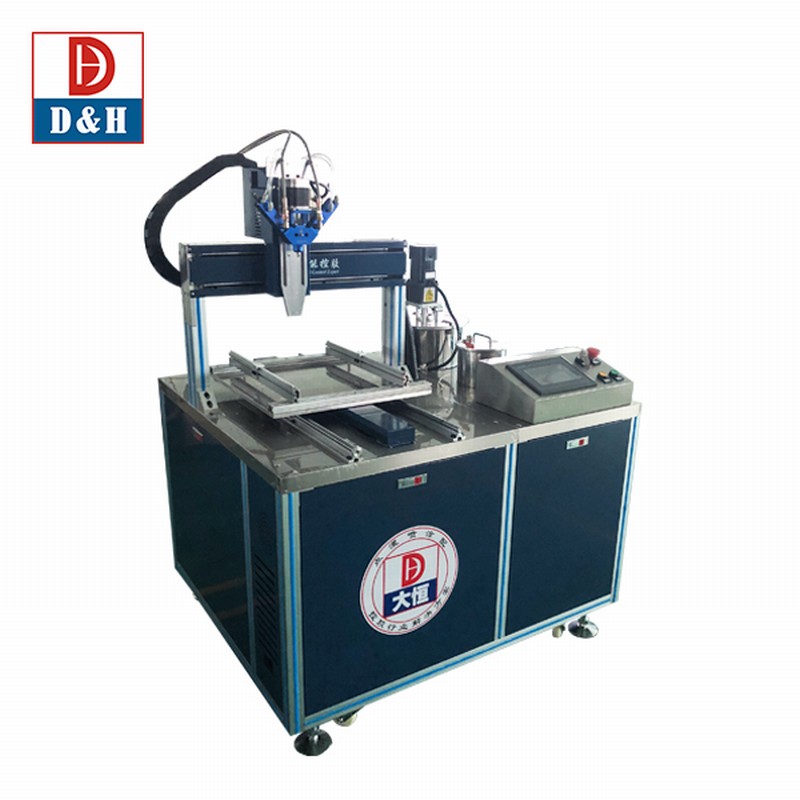

Function AB Epoxy Mixing and Stirring Machine 100/100 for Automatic Filling of Resin

Ask Lasest Price
Brand Name :	D&H
Supply Ability :	50 Piece/Pieces per Month MOQ=1PCS
Price :	$9,900.00/pieces 1-1 pieces

Add to Cart

Product Details
Company Profile

Function AB Epoxy Mixing and Stirring Machine 100/100 for Automatic Filling of Resin

Product Overview

Automatic Two Component equipment Epoxy Resin Filling Machine 100/100 AB Glue Dispensing Machine

I Machine demand description
Potting, sensors, CPUs, etc. Encapsulation products for various components on PCBs. These applications applied by our two part compound equipment are offered high performance and high accuracy , which assure products with high consistency on metering and
potting in terms of electrical insulation, adhesion, temperature and fire resistance and durability.

II Metering working Principle
The machine will have two tanks for keeping Liquid A & B separately.
There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with
each other in the mixer pipe and dispensed out according to the programmable data .

II Features and Benefits:
1. The glue potting system are for AB component materials for metering, mixing and potting .
2. Accurated metering and evenly mixing helps to avoid possible waste of glue.
3. Dispensing size and positioning keep consistently and fastly.
4. Good universality makes our machine suitable for applications of LED, electric and others glue potting and dispensing needed.
5. Easy to program and operate.
6.Fast metering & mixing and running speed keep potting with high efficiency.
7. Tally function, non-standard mode, tank level alert, filter mode, liquid display device, preventing backflow device and other functional device.

FEATURES AT A GLANCE

Function AB Epoxy Mixing and Stirring Machine 100/100 for Automatic Filling of Resin

Front elevation

Application

Core Technology

Applications：

Auto parts , Reverse Sensor, Electronic Circuit Board, Electronic Ballast，air Filters, LED products ,Electronic components,Crafts，Ads modules, Capacitors, Power supply, Transformer, end cap for filter, solar junction box,Power module, Ignition coil,Sensor, Photovoltaic module, Photovoltaic inverter and other products which want the potting , dispensing , dosing , metering production process .

Suitable Materials:

Two component silicones,polyurethane,epoxies,two part compound,AB compound,Bi-compound
other potting dispensing adhesive .

PRODUCT CONFIGURATION

ITEM	Parameter
Mixing ratio	1:1--10:1 adjustable
Working range	800850100mm
Displacement speed	200mm/s（speed）
Out-glue speed	1-12g/s
Accuracy	±1%（output volume）±1%（mixing）
tolerance	≤0.1mm
Flow control	Digital input
Program memory	99pcs
Motion trail	Dot , line ,curve ,circle
Automatic controlling system	Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system	AB glue back suction valve, achieve AB glue independent operation
Programmatically	Tech programming With computer systems (Micro software Windows 7,Windows10 optional)
Mixing method	dynamic mixing
Power supply	220V/50Hz/1500W
Air source	0.5-0.8Mpa
Viscosity range	50-20000cps
Outer dimension	1500L1200W1600H mm
A tank	25L stainless tank（optional）
B tank	10L stainless tank（optional）
Others	AB tank 、A pump、AB pipeline heating function

■ About D&H

D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.

Certifications

■ QUALIFICATION CERTIFICATE

We have more than 30 national patents, and are at the industry pioneer level in the core technologies of glue potting and dispensing

Sales Network & Customers

Exhibition

Packing & Delivery

■ Standard Wooden Case with Vacuum Package

● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.

FAQ

Q：Do you offer oversea service? A：We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service.
Q：How dose your factory do regarding quality control? A：We assure 1 year warranty for the main part,also we offer spare part for back up. Please check with sales engineer in detail.
Q：What are your payment terms? A：Normally, 30% advance by T/T and balance paid off before delivery.
Q：Are you a factory or trading company ? A：We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years.
